MJ780
Model Name
MJ780
Series
Rotary Joint
Data
-
Manufacturer information
provider logo
MULTISHYDRO

Mechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more

Problem with product info?
Update request
Manufacturer
MULTISHYDRO
Product Type
Machine
Brand
-
SKU
59025
Product Name
-
Model Name
MJ780
Size
-
Weight
-
Product Details

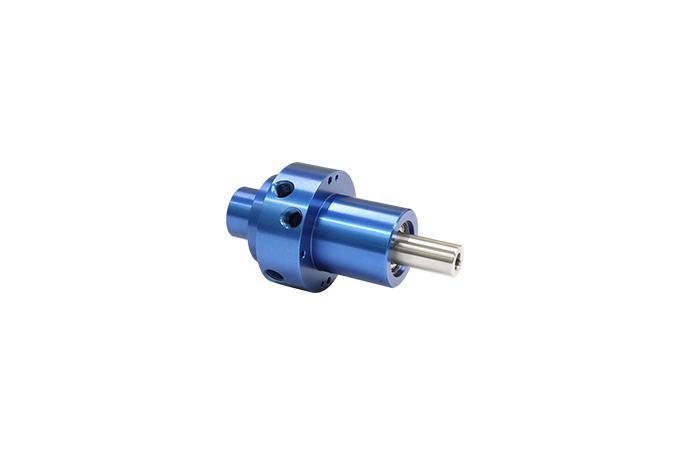

MULTIS HYDRO MJ780 Series is designed to be used for much higher speed. It especially allows a wide range of options in terms of a machine tool as the draw bar can move up to 19mm. It is easy to dissemble with its all-in-one bearing system and guarantees the longevity despite the cutting fluid with a great amount of slurry since it is composed of high-tech material silicon carbide for the standard seals. The labyrinth drain box installed inside protects the bearings safely although there is a leak of cutting fluid.



Standard Size -
Fluid Coolant
Max. Pressure 140 kgf/cm²
Max. Temperature 120 °C
Max. Rotating Speed 24,000 RPM
