MULTISHYDRO

MULTISHYDRO

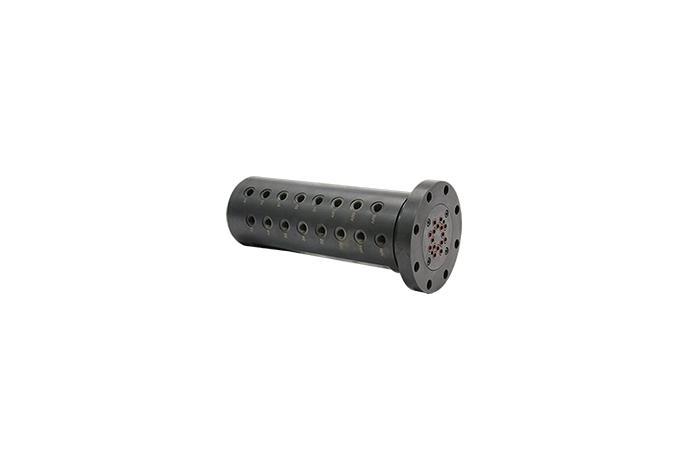

Rotary Joint

Model

Series

Rotary Joint


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

MULTIS HYDRO MJ600 Series is specially designed to be used for equipment operating in multi-level circuits such as turn table, hydraulics, pneumatics, cutting fluid and so on. Custom-made MJ600 series is different in inner structure and parts according to the fluid and pressure being used. In general, standard products we produce are separated into 200 kgf/m2 and 350 kgf/cm² depending on the pressure, but 1,000 kg/cm² is also available in a special case. Please contact our engineer for further questions if you want more specific details.


Standard Size -
Fluid Air, Hydraulic
Max. Pressure Air: 10 kgf/cm²
Hydraulic: 200 kgf/cm²
Max. Temperature 120 °C
Max. Rotating Speed 250 RPM
