7인치 터치모니터
Model Name
T-7HN
Series
Monitoring
Data
-
Manufacturer information
provider logo
MSTIndustrial equipment manufacturer, Thermo Hygrostat, Air conditioning, Dehumidifier, Screw, Heat pump and more
Problem with product info?
Update request
Manufacturer
MST
Brand
-
SKU
129989
Product Name
7인치 터치모니터
Model Name
T-7HN
Size
-
Weight
-
Product Details

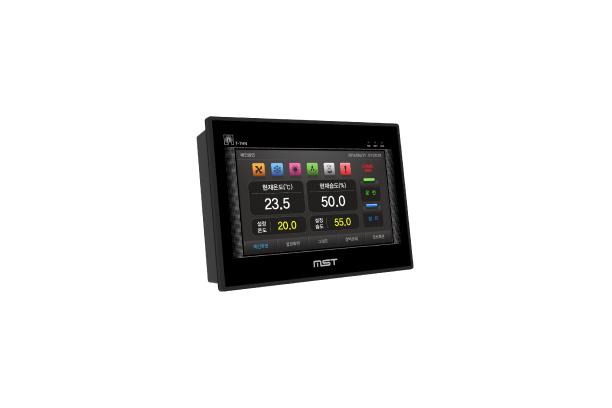

 T-7HN 》7인치 터치모니터

ㆍ800×480 / 32bit TFT Color LCD Display Monitor

ㆍ최대 PORT 당 32대 장비연결

ㆍEthernet 1PORT 10Mbps 속도로 원격 감시/제어가능

ㆍ경보/로깅 데이터 파일을 Micro SD 카드로 관리







제품설명

산업용 제어기로 PLC 나 DDC 또는 산업용 OEM 콘트롤러(통신내장형)일 경우 DISPLAY 모니터 설치가 어렵거나 장비에 부착되지 않고 사용되는 경우가 많으며, 모니터가 있어도 조작이 쉽고 원거리에 있을 경우에 본 터치모니터가 사용될 수 있습니다.

통신방식이 OPEN PROTOCOL인 MODBUS방식이나 기타 ASCII형식의 전용 프로토콜을 사용하더라도 연결 가능하며, 1:1 또는 1:N 방식으로 연결할 수 있고 외부로 데이터를 전송 또는 Micro SD Card로 데이터를 관리할 수 있는 장점이 있습니다.

일반 관리자/사용자가 화면을 보고 장비상태를 쉽게 이해하고 관리할 수 있는 사용자 중심의 화면구성을 기본으로 하고 있습니다.







사양표

MODEL

T-7HN

전원사양

24VDC 0.8A

소비전력

20W

MCU

32bit EISC Core 108MHz

화면

7.0" Touch TFT LCD(800 X 480)

통신사양

*주1) RS485 2점(Modbus RTU), LAN(TCP IP)

출력사양

NONE

※ 주1 : LAN은 옵션사양 입니다.





▶ 기능

현재 입출력 상태표시(온도, 차압 등) / 전체 or 개별 및 그룹제어 / Micro SD Card (로그기록저장)





제품외관치수(mm)

■타공사이즈:  191×133
