product Image

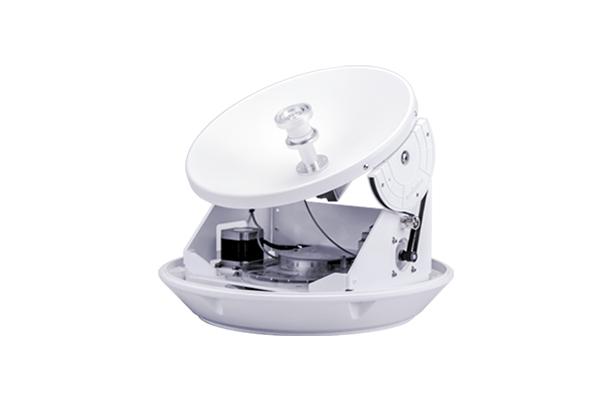

Modootel Marine Satellite TV Antenna
Model Name
TVRO M37S
Series
Satellite Communication (PRODUCTS)
Data
-
Manufacturer information
provider logo
modootel

Satellite Communication supplier, Maritime VSAT, Satellite TV Antenna and more

Problem with product info?
Update request
Manufacturer
modootel
Product Type
Machine
Brand
-
SKU
119937
Product Name
Modootel Marine Satellite TV Antenna
Model Name
TVRO M37S
Size
-
Weight
-
Product Details

37cm Antenna

High Quality TV same as your home


Watch Satellite Broadcasting

Automatic Identity and High Speed Tracking with Digital Video Broadcasting


Easy to install

Easy Satellite information and installation with Antenna Control Unit(ACU)


Easy to control

Suitable to all types of vessels and Automated system without any hard working and just power the satellite TV on



M37S Technical Specification & Dimension

Input FrequencyKu-Band(10.7 GHz ~ 12.75 GHz)
Minimum EIRP50 dBW
PolarizationHorizontal/Vertical, RHCP/LHCP
EL Control Range680°
AZ Control Range0° ~ 90°
ROLL & PITCHROLL 65°/Sec, PITCH 65°/Sec
Tracking Rate60°/Sec
Power Supply110~220VAC or 9.5V~36V DC(option)
Antenna SizeD430 x H480mm
Antenna Weight11 Kg
ACU Weight1.1 Kg
Operation Temp.-15°C ~ +60°C
Storage Temp.-25°C ~ +70°C
Humidity95% R.H.



ACU Dimension
