Features

ㆍFull Automatic

- Fully automatic system. Only by pressing the button, a user can use the product.

  Easy to use and install. Simple operation.



ㆍAuto-Drain

- Its automatic steam discharging structure secures user safety when blackout and power blocking.



ㆍLED Display

- LED allows users to check the status at just one glance from a remote location.



ㆍUser Mode

- Sterilizing temperature, sterilizing time and drying time options are available. User can choose options for their needs.



ㆍDoor

- One-touch technical design allows easy operation just by pushing and pulling.



ㆍSafety Device

- It secures user safety by safety device against overheating, over pressure, door lock and electricity.



ㆍSelf-Test Function

- Chamber pressure automatically drops to the atmospheric pressure to secure user safety when problems occur.

  10 self-diagnosis functions secure user safety by displaying error codes.



ㆍGasket

- Improved durability by precise design saves costs by extending gasket’s life span.



Specifications

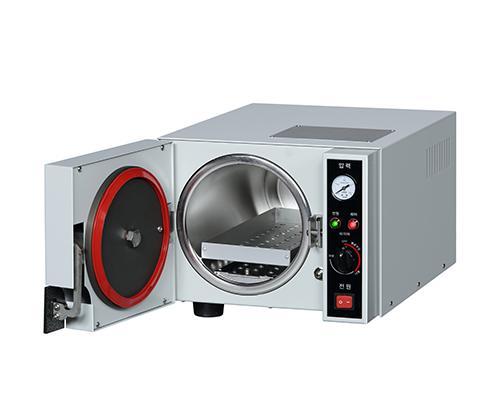

Model	MK-CLAVE compact
Dimensions	W310 x H310 x D450(㎜)
챔버	W223 x H68 x D312(㎜) chamber capacity : 4ℓ
Tray size	W200 x H30 x D300 1 unit
Sterilization pressure	0 ~ 2.2 kgf/cm2
Sterilization temperature	121℃, 132℃, 134℃
Sterilization time	Max. 30 min.
Drying time	Max. 30 min.
Power	AC220V, 50/60Hz
Power consumption	2.0Kw
Controller	8 Bit microprocessor
Operating condition	* Operating temperature: 5 ~ 40℃ * Relative humidity : 5~30℃ below 75%, 31~40℃ below 60% * Below the elevation of 2,000 m
Equipment weight	Approx. 19kg (basic tray included)

* This product is a “medical device”.
