Manufacturer
MIRAE INDUSTRY
Product Type
Machine
Brand
-
SKU
43770
Product Name

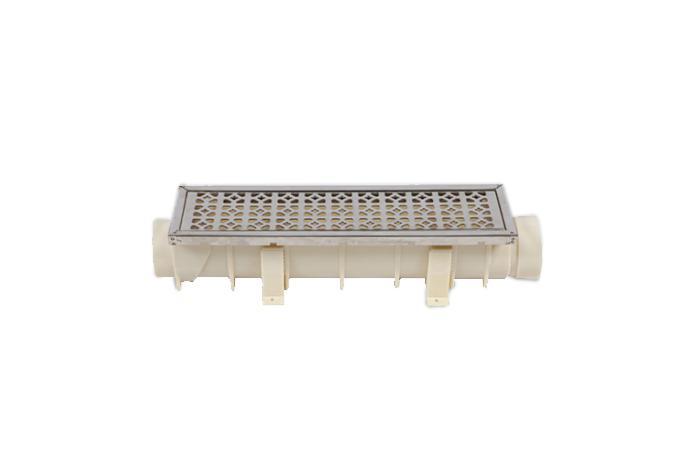

Channel drain
Model Name
M-17
Size
-
Weight
-
Product Details
Feature1
As there is fixing equipment, it can be steadily fixed while casting concrete.
Feature2
Problems of bad smell after construction will be solved by the inner equipment.
Feature3
The sewage traps can be lengthened by connecting to each other and strong connection facilitates inventory management.
Patent application: No. 10-2012-0003305
| For channel drain 1911/16", 39⅜" | |||||
| w1 4¾" | w2 515/16" | L1 18½" 383/16" | L2 1911/16" 39⅜" | H 4¾" | In,Outlet 215/16" |
| Materials | Grate– stainless steel (Type 304-27) |
| Lower body – ABS resin |
