Features

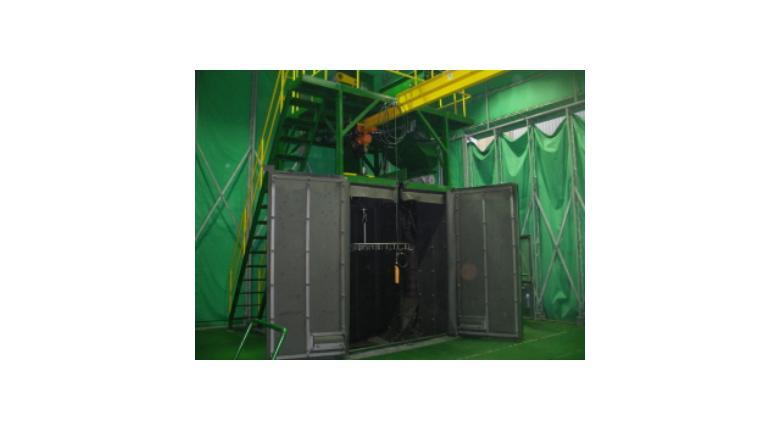

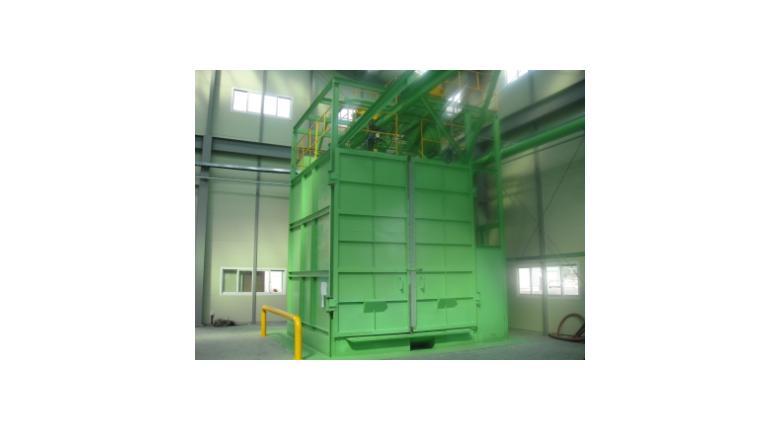

It is a shot blast machine that rotates the hanger at low speed by using the rotating device after moving the workpiece to the shot blasting room by hanging it on the hanger and effectively descaling the product by blasting the shot ball by using the centrifugal force of the impeller.

1. Blasting unit : Impeller Ø360 - 4Set , Air Blast Unit - 1Set
2. Recovery unit
   • Screw Conveyor : 40 Ton/Hr - 1Set
   • Bucket elevator : 40 Ton/Hr - 1Set
   • Rotary Separator : ​40 Ton/Hr - 1Set
3. Dust Collector - 200CMM​ - 1Set
4. Electric unit : Main Panel, Chain Hoist
