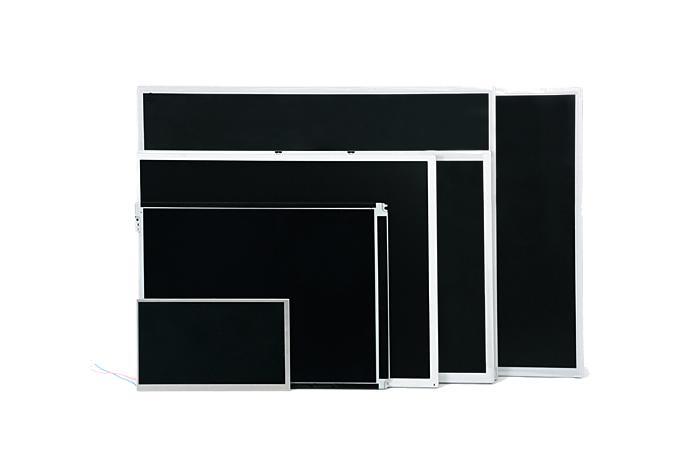

Sunlight Readable Solutions
Micro Display Inc. makes high-brightness and sunlight-readable TFT–LCD panels after changing backlight units with the standard brightness of Samsung or LG TFT–LCD screens.
Our high-performance engineers redesign BLU with LED and inverter boards at high-class sanitary rooms.
Our automatic brightness/dimming controls can provide long-life high-brightness LCD displays that can be used for outdoor applications, such as ATMs, KIOSK, military defense navigation monitors, digital signage displays, etc. We are supplying full SDK solutions to our customers (high-brightness TFT–LCD panels, automatic brightness/dimming controls, AD boards, inverter boards, OSD boards, full cable sets, power supply, and touch screens).
Key Features
* Redesigning LED/CCFL backlight unit
* Brightness: 1,000–2,000 nits

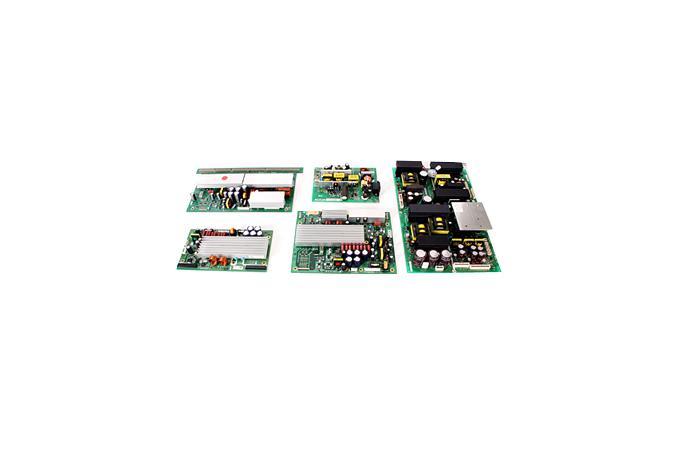

* Special design of inverter boards
* Available screen sizes: from 6.5 to 82 in
* Automatic brightness/dimming controls
Major Applications
Outdoor application of digital signage displays, industrial application displays, ATMs, KIOSK, POS systems, military defense monitors, and various sunlight-readable displays.
* Sunlight Readable Solutions
| Function |
6.4" |
10.4" |
12.1" |
15" |
17" |
19" |
20.1" |
32" |
| High Brightness |
1000cd/m2 |
1000cd/m2 |
1000cd/m2 |
1500cd/m2 |
1200cd/m2 |
1000cd/m2 |
1000cd/m2 |
1000cd/m2 |
| Contrast Ratio |
300:1 |
300:1 |
200:1 |
450:1 |
700:1 |
700:1 |
800:1 |
1600:1 |
| LED/CCFL |
4 Lamps |
4 Lamps |
6 Lamps |
12 Lamps |
12 Lamps |
12 Lamps |
|
|
| Viewing Angle |
Hor(L/R):60/60
Ver(U/D):40/55 |
Hor(L/R):60/60
Ver(U/D):40/55 |
Hor(L/R):60/60
Ver(U/D):40/55 |
Hor(L/R):65/65
Ver(U/D):50/60 |
Hor(L/R):65/65
Ver(U/D):50/60 |
Hor(L/R):75/75
Ver(U/D):70/60 |
Hor(L/R):89/89
Ver(U/D):89/89 |
Hor(L/R):89/89
Ver(U/D):89/89 |
| Display Color |
262,144 |
262,144 |
262,144 |
16.2M |
16.2M |
16.7M |
16.7M |
16.7M |
| Display Mode |
VGA |
VGA |
VGA, SVGA |
XGA |
SXGA |
SXGA |
VGA |
WXGA |
| Input voltage |
DC 12V |
DC 12V |
DC 12V |
DC 12V |
DC 24V |
DC 24V |
DC 24V |
DC 12V |
| VESA DPMS |
O |
O |
O |
O |
O |
O |
O |
O |
| Input signal |
Analog RGB |
Analog RGB |
Analog RGB |
Analog RGB |
Analog RGB |
Analog RGB |
Analog RGB |
Analog RGB |
| DDC1/DDC2B |
O |
O |
O |
O |
O |
O |
O |
O |
| OSD Control |
Available |
Available |
Available |
Available |
Available |
Available |
Available |
Available |
| Operating Humidity(%RH) |
20~90 |
10~90 |
10~90 |
<h6></h |
10~90 |
10~90 |
10~90 |
10~90 |
| Operating Temp.(℃) |
0~50 |
0~50 |
0~50 |
0~50 |
0~50 |
0~50 |
0~50 |
0~50 |
| Storage Temp.(℃) |
-20~65 |
-20~60 |
-20~60 |
-20~60 |
-20~60 |
-20~60 |
-20~60 |
-20~60 |
