1. Description

○ Video UTP Receiver enables to send video signals from Video Transmitter
    (MVUT-100) through UTP to Composite Video signals.

○ Video Output supports NTSC/PAL. UTP Cable used CATEGORY 5,5E,6 types.
    Transmitter and receiver are needed to be connected point-to-point and
    controlled RS-485 signal for PAN/TILT through UTP cable so it’s not necessary
    to install extra cable.

○ MVUR-100 can be controlled from the distance of 250m, 500m, 750m, and 1000m
    by 4Ch DIP switch, gain terminal helps to realize clear video quality.

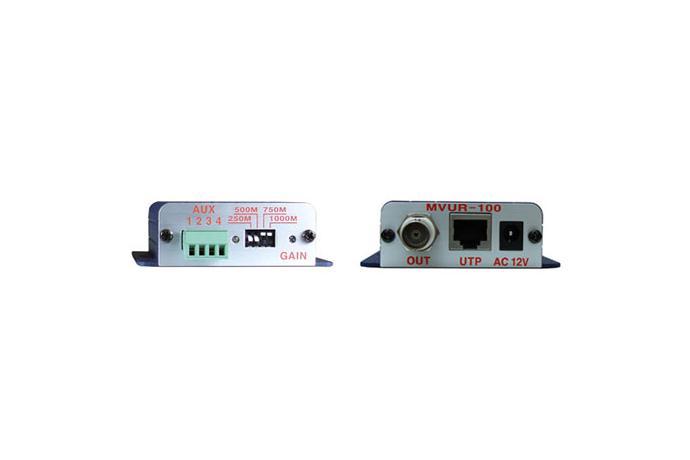

2. Panel Drawing

3. Specification

○ General Part
  - Input : Balanced Differential Signal, 100Ω, RJ-45
  - Output : 1 Vp-p Composite Video, 75Ω NTSC/PAL, BNC Connector
  - AUX Input / Output Port : Control Data or Stereo Unbalanced Audio, WAGO
                                          Connector
  - Cable : Unshielded Twisted Category 5,5e,6 AWG24-4P
  - Internal Operation Frequency : 130MHz, -3dB
  - Internal Distortion : 60dB@5MHz
  - Differential Phase Error : 0.04 Degree NTSC, 150Ω
  - Operating Temperature Range : -40℃ ~ +85℃
  - Internal Power Dissipation : Max 600mW
  - Humidity Range : 0% ~ 90%

○ Case Part
  - Weight : 200g
  - Dimensions : 68(W) * 78(H) * 25(D) mm
