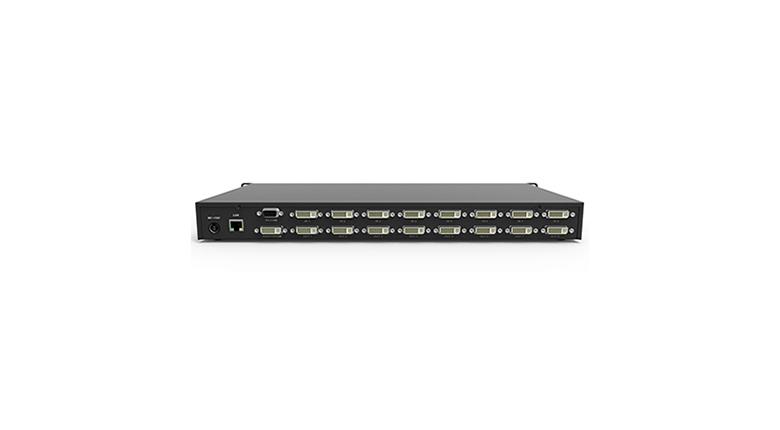

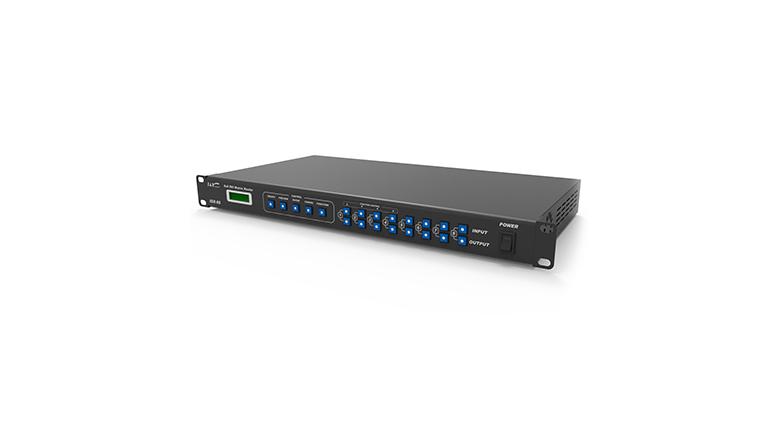

IDX-88 DVI matrix distributes(switching) high-definition digital inage from equiment to output display equiment.
It is user-configurable matrix switching and routing DVI input and outputs.
-. Easy and convenient operator system
-. Remote control via RS-232C, Ethernet(TCP/IP)
-. Supports HDCP 1.2
-. Data rate : 1.65Gbps (Single link)
-. EDID read function
-. 19" standard RACK TYPE CASE (1U)
-. KC certification : MSIP-REM-BLX-IDX-88
RESOLUTION | VGA(640X480) ~ WUXGA(1920X1200), HDTV(480i~1080i/p) |
INPUT CONNECTOR | DVI D-29 Pin Female x 8Ch |
OUTPUT CONNECTOR | DVI D-29 Pin Female x 8Ch |
POWER | AC 110-240V/1.5A, 50/60Hz, DC12V/5A |
DIMENSION(mm) | 482 x 230 x 44 |
WEIGHT(Kg) | 3.5Kg |
ENVIRONMENT | -10°C~60°C / Humidity 80% |
CERTIFICATION | MSIP-REM-BLX-IDX-88 |
