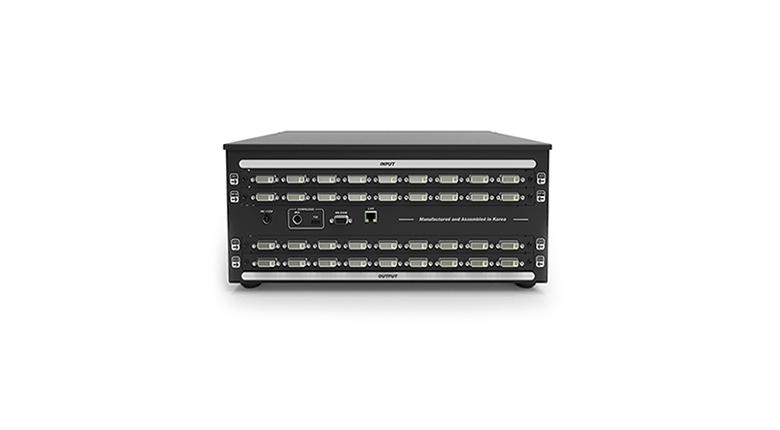

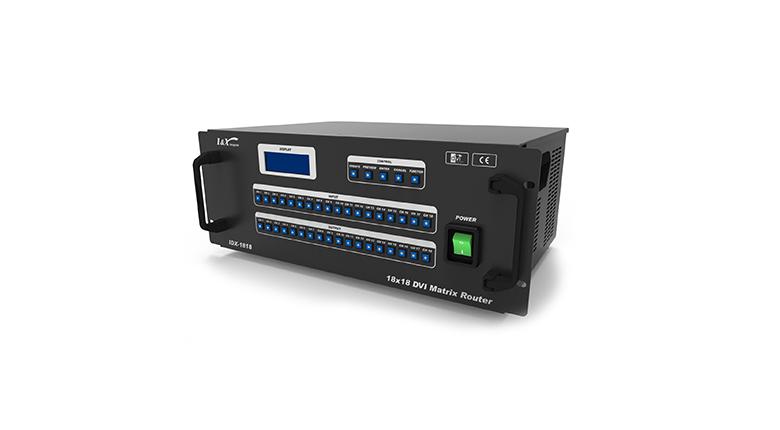

IDX-1818 DVI matix distributes(switching) high-definition digital image from input equipment to output display equipment.
It is user-configurable matrix switching and routing of DVI inputs and outputs.
-. Easy and convenient operator system
-. Remote control via RS-232C, Ethernet (TCP/IP)
-. Supports Various resolution
-. Supports HDCP 1.2
-. Easy changeable made by slot-type
-. Data rate : 1.65Gbps (Single Link)
-. EDID read function
-. KC certification : MSIP-REM-BLX-IDX-1818
RESOLUTION | VGA(640X480) ~ UXGA(1920X1200), HDTV(480i~1080i/p) |
INPUT CONNECTOR | DVI D-29 Pin Female x 18Ch |
OUTPUT CONNECTOR | DVI D-29 Pin Female x 18Ch |
POWER | AC 110-240V/1.5A, 50/60Hz, DC12V/5A |
DIMENSION(mm) | 480 x 303 x 177 |
WEIGHT(Kg) | 9Kg |
ENVIRONMENT | -10°C~60°C / Humidity 80% |
CERTIFICATION | MSIP-REM-BLX-IDX-1818 |
