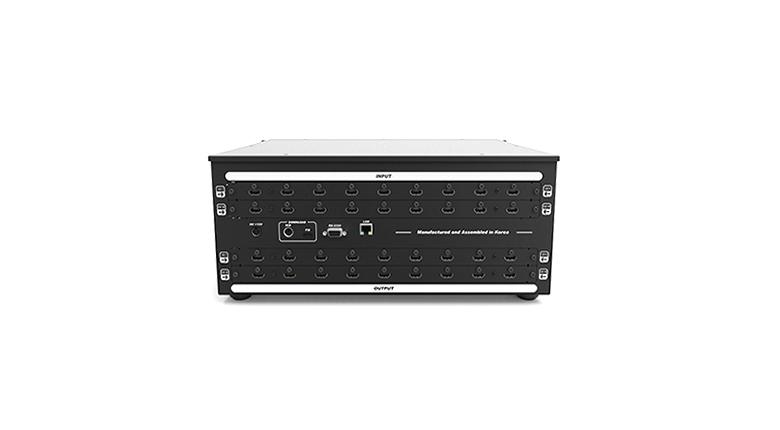

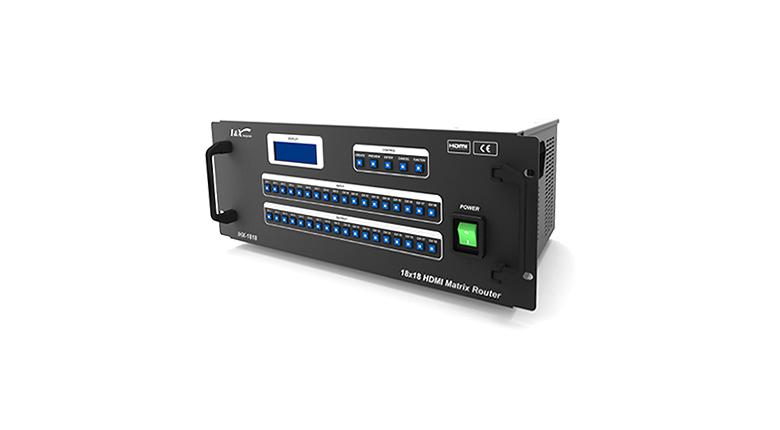

IHX-1818 HDMI matrix distributes(switching) high-definition digital image from input equipment to output display equiment.
It is user-configurable matrix switching and routing of HDMI inputs and outputs.
-. Easy and convenient operator system
-. Remote control via RS-232C, Ethernet(TCP/IP)
-. Supports Various resolution (Max 1920x1200@60Hz)
-. Supports HDMI 1.3, HDCP 1.2
-. Easy changeable made by slot-type
-. Data rate : 1.65Gbps
-. EDID read function
-. KC certification : MSIP-REM-BLX-IHX-1818
RESOLUTION | VGA(640X480) ~ WUXGA(1920X1200), HDTV(480i~1080i/p) |
SIGNAL BANDWIDTH | 2.25Gbps |
INPUT CONNECTOR | HDMI 19Pin Female x 18Ch |
OUTPUT CONNECTOR | HDMI 19Pin Female x 18Ch |
POWER | AC 110-240V, 50/60Hz, DC12V/9A |
DIMENSION(mm) | 482 x 320 x 177 |
WEIGHT(Kg) | 9Kg |
ENVIRONMENT | -10°C~60°C / Humidity 80% |
CERTIFICATION | MSIP-REM-BLX-IHX-1818 |
