Water in Oil Monitor

Model Name

EASZ-2

Series

Water in Oil Monitor

View AllView All Series

Data

Manufacturer information

M&C ENGINEERING

Flowmeter and various instruments

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

M&C ENGINEERING

Product Type

Machine

Brand

SKU

139895

Product Name

Water in Oil Monitor

Model Name

EASZ-2

Size

Weight

Product Details

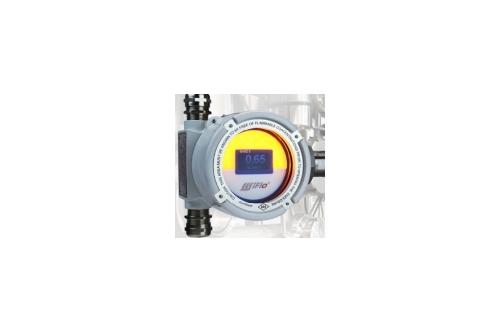

The EESIFLO EASZ-2 Water-In-Oil Monitor is a full-bore inline and online highly accurate product designed to continuously monitor the water content in a flowing hydrocarbon media (oil). It is inline because it can be fitted easily into an existing pipeline and online because it can continuously monitor and transmit the values to a remote location.

The unit is designed so that the fluid mixture flows through a fixed electrode assembly. This enables the dielectric constant of the mixture to be measured as a variable capacitance which in turn produces an analog or digital output.

Specification

Environment
Ingress protection	IP66
Ambient Temperature	-20°C to 60°C (-4 to 140°F) - RH up to 95%
Media Temperature	0°C to 90°C (32 to 194°F)
Storage Temperature	-20°C to 60°C (-4 to 140°F)

Measurement
Range of Water in Oil	0 - 10%
Accuracy	±0.05% - for range 0-1% with Laboratory Calibration
	±0.1% - for range 0-5% with on-site 2 Point Calibration
	±0.2% - for range 0-10% with on-site High Point Calibration
Response Time	1s
Rate of Temperature Change	Maximum 1°C / minute

Power Supply
Rated Voltage Range	11-28 VDC
Nominal Voltage	24 VDC
Power Consumption	2W
Cable Glands	NPT 3/4
Cable Type	ø 13-18mm - 2 core to 5 core
	0.25 - 2.5 mm² (23 - 13 AWG) for solid conductors
	0.25 - 1.5 mm² - for stranded cables terminated with ferrule crimps

Physical Parameters
Body	191 x 132 x 125mm - Die cast aluminium powder coated
Sensor Pipe	316 Stainless steel
Sensor Pipe Connection	Threaded G1/2" - G3"
	Flanged 1" - 48"
	PN10 - PN40 (150 - 1500 ANSI)

Interface
Digital Communication	RS485 - 115200 baud - MODBUS
Analogue Output	4-20mA passive or active current loop mode (3.5 - 20.5mA max) (8-28VDC)
Open Collector Output	State "0" or "1" (off or on) - Maximum 50V / 45mA
