Description

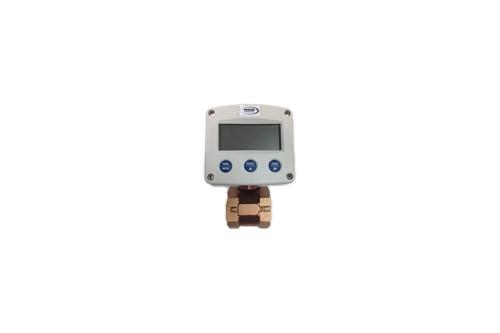

The New digital display flow meter is a 2 wire loop powered 4-20mA DC indicator that displays a flow rate and total. On-screen engineering units are easily configured. Password protection and 16 bit A/D resolution. A New built in wet/wet differential pressure sensor is protected by an isolated stainless steel diaphragm and provides a 4-20mA DC signal to the display. The enclosure is IP67 / NEMA 4X rated which further enhances this models capability. Available in threaded or flanged connection and bronze or stainless steel construction.
Specification
Standard Specifications :
Accuracy : ± 3% F.S.
Repeatability : ± 1% F.S.
Pressure Max. : 180 psig (12.6 kg/㎠)
Pressure Min. : 10 psig (0.67 kg/㎠)
Temp. Max. : 212ºF (100ºC)
Temp. Min. : -30ºF (-34ºC)
IP67 / NEMA 4X Rated Enclosure
Electrical Rating :
Power Input : 100mA, 24Vdc power supply 20-30Vdc (Not Included)
Input loop powered from 4-20mA signal. Voltage drop max. 2.6V
Display:
Rate Display : High intensity reflective numeric and alpha numeric LCD, UV resistant User definable,
8 times/sec - 30 secs.
Password Protection
7 and 11 digit various symbols and measuring units
Environmental :
Operating Temperature : -30ºF (-34ºC) to 212ºF (100ºC)
Humidity : 0-90% Noncondensing
Accuracy : 0.5% F.S. (Non-linearity, Repeatability and Hysteresis
Stability : 0.5%F.S./year
Signal Inputs : Full Scale Range: 4 to 20 mA DC
Loop Voltage Drop: 2.6 Volts Max. at 20mA
Update Time: 4 times/sec.
Span: 0.001/999,999 with available decimal position
16 Bit resolution, error < 0.01mA/+- 0.05% F.S.
Low cutoff supplied to inhibit indications at low flow rates
Signal Ouput : The pulse output transmitting accumulated total
Type : one passive transistor output (NPN)
Max. 500Hz pulse length user definable between 1 msec up to 10 sec.
Calibration & Operation : Input Scaling : Via front keypad
Decimal Point : Via front keypad
Reset Input : Via front keypad
Keypad : 3 tactile feedback keys
Ordering Information
| Step 1 - Select a Product Category (i.e. Flowmenters, Flow Transmitters, etc.) and Product (i.e. Liquid, Gas, etc.) |
||||||||||
| Step 2 - Select the item # which defines the (a) body size, (b) connection type and (c) material of construction and press the "Request Information" button to continue to Step 3. |
||||||||||
| A) Body Size - Pipe size at the meter inlet. | ||||||||||
| B) Connection Type (Series) -- | ||||||||||
| 7 - Threaded units with FNPT connection Standard. FBSP threads Bronze and Monel only. | ||||||||||
| 8 - Wafer units standard 150 # and 300 # class flanges (or international equivalent). | ||||||||||
| C) Material - | ||||||||||
| 1 = Bronze 2 = Monel 3 = Stainless Steel | ||||||||||
| Step 3 - Select (d) flow direction, (e) flow range, (f) Options (Required Fidlds*). Complete the information section name, address, phone, email, etc. and submit for request for quote or for additional product information. |
||||||||||
| D) Flow Direction - Select L, R, VUL, VUR, VDL, VDR. | ||||||||||
| E) Flow Range (full scale) - Select from available flow rate list specific to each item #. | ||||||||||
| F) Options (if required) - Select from table of options specific to each item #. | ||||||||||
| Note : Not all options can be combined, consult the factory for details. Example : See complete model number below. |
||||||||||
Product Category - Flow Meters for Liquids and Gases (Gas)
