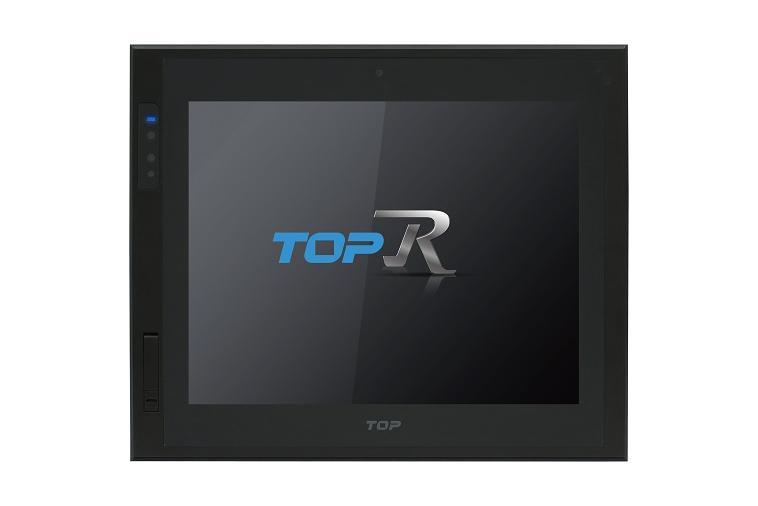

TOPRD0810S + TOPRP10D

8.4", 스탠다드 모델, 해상도:800x600

◆ 쿼드코어 CPU

◆ 고급스러운 알루미늄 바디

◆ 화면과 본체의 분리

◆ 3접점 동시인식 멀티 터치, 제스처 조작

◆ 밝고 선명한 풀칼라 LCD

◆ 확장된 인터페이스

- 시리얼 3포트, 이더넷 2포트, USB

1. 성능사양

 TOPRD0810S

- TOPRP10D

Interface	Serial COM1	RS-232C, RS-422/485 Asynchronous +5Vdc PWR Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: DSUB 9pin x 1
	Serial COM2	RS-232C, RS-422/485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: DSUB 9pin x 1
	Serial COM3	RS-485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: DSUB 9pin x 1
	Ethernet	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX  Connector: RJ-45 x 2
	USB Host	USB 2.0 Compatible, Output 5Vdc/0.5A Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol) Connector: USB Type A x 2
	USB OTG	USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol) Connector: USB Micro-B(Front) x 1
	SD Card	SD Card Slot x 1, SDHC(MAX 32GB)
	Option Modules	EtherCAT, CANopen, CAM32
Memory &Others	Screen Memory	128MB
	Backup Memory	512KB: System buffer(10K Word), Including Alarm/Logging/Recipe
	Backup Period	Permanent
	Real Time Clock	Built in
	Status LED	3 LEDs(Power, Operation, Link) Built in
Structure	External Dimension(㎜)	201.6x147.6x37.3
	Weight(kg)	0.82

2. 일반사양

Display + Process Specifications
