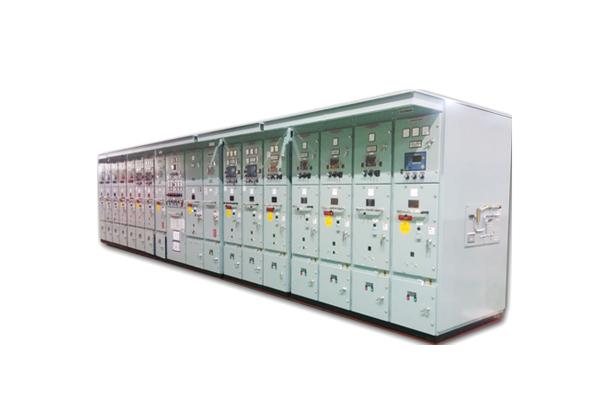

HV Main Switchboard
The high-Voltage main switch gear is designed to withstand the mechanical, electrical and thermal stresses caused by shock, vibration and short-circuit faults to meet the environmental and safety requirements of the marine and industries.
Rating and Technical Specification
| Type | METAL - CLAD |
|---|
| Rated Voltage | 6.6kV, 7.2KV, 12kV |
|---|
| Rated Current | 1250 A, 2000 A, 3150 A |
|---|
| Rated Frequency | 50/60 Hz |
|---|
Construction
| Frame Work | FORMED SHEET STEEL OR SUBSTANTIAL BOX-FRAME |
|---|
| Access | Front and Rear |
|---|
| Protection Degree | IP32 |
|---|
| Handrail | Front and Rear |
|---|
| Power Line Inlet | Bottom or Upper part of Rear(Upper part, Option) |
|---|
