Catalog-Luxco

카탈로그-럭스코

LUXCO Co., Ltd. is a company specializing in electrical and electronic equipment for marine and industrial plant facilities, alongside solar module production and power generation businesses. Since its establishment in 1998, the company has contributed to regional and national industrial development through continuous management innovation, planned R&D, and bold investments. Starting from the switchgear industry, it has successfully expanded its business into marine and industrial plant electrical and electronic equipment, and the green growth industry of solar module manufacturing and power generation. With a mission of 'Making Attractive Place,' LUXCO prioritizes trust, challenge, innovation, fairness, and consideration, aiming to create a customer and employee-centric company. The company is committed to fulfilling its social responsibilities by striving to become a strong energy sector company that provides integrated power operation solutions.

선박 및 산업플랜트 설비용 전기전자 기자재 산업과 태양광 모듈 생산발전 사업을 영위하는 기업. 1998년 창업 이래 지속적인 경영혁신과 연구개발, 과감한 투자를 통해 지역 및 국가 산업 발전에 기여하는 기업. 수배전반 산업을 기반으로 선박 및 산업 플랜트 설비용 전기전자 기자재 산업, 그리고 녹색 성장 산업인 태양광 모듈 생산 및 발전 사업으로 사업 영역을 성공적으로 확장한 기업. 'Making Attractive Place'라는 기업 미션 달성을 위해 신뢰, 도전과 혁신, 공정과 배려를 핵심 가치로 삼아 고객과 직원이 최우선이 되는 회사 구현. 전력 운영 솔루션을 통합 제공하는 에너지 분야 강소기업으로의 도약을 목표로 사회적 책임을 다하는 기업.

Type	Module	P MAX	Efficiency(%)	Remark

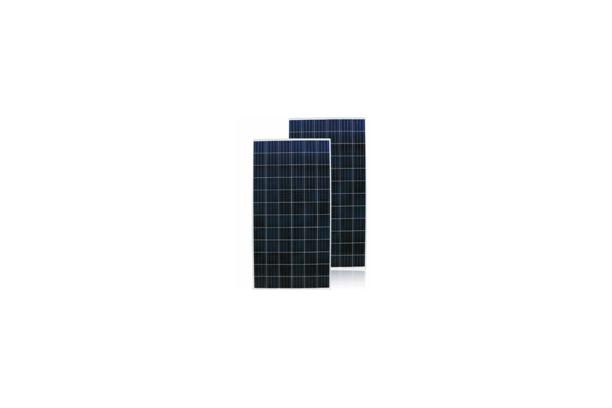

66Cell Series	LXS-4K300B1	300	16.85	LXS-4KxxxB1/2(300~310Wp)
	LXS-4K305B2	305	17.13
	LXS-4K310B2	310	17.41

Characteristics	Unit	300	305	310
Rated Power at STC(Pmax.)	W	300	305	310
Max.Power Voltage (Vmp)	V	34.6	34.9	35.4
Max.Power Current (Imp)	A	8.68	8.74	8.76
Open Circuit Voltage (Voc)	V	42.35	42.50	42.62
Short Circuit Current (Isc)	A	9.31	9.34	9.39
Efficiency	%	16.85	17.13	17.41
Maximum System Voltage	VDC	1,000
Maximum Series Fuse Rating	A	15
Maximum Series Diode Rating	A	15
Power Tolerance	W	0~5W

Cell Type	Mono Crystalline Silicon
Cell Dimensions	156.75X156.75 mm²
No.of Cells and Connections	66(6x11)connected in Series
Weight	20.5kg
Operatiog Temperature	-40 to+80℃
Connector Type	MC4 compatible
Junction Box	IP67 grade
Output Cable	2 x 1200mm / 2 x 47.2inch length
Fire Resistance Rating	Class C
Application Class	Class A
Structural Load	5400 Pa

Nominal Operation Cell Temp.(NOCT)	℃	45±2℃
The Coefficient of Pmax.	%/℃	-0.359
The Coefficient of Voc	%/℃	-0.245
The Coefficient of Isc	%/℃	0.024
