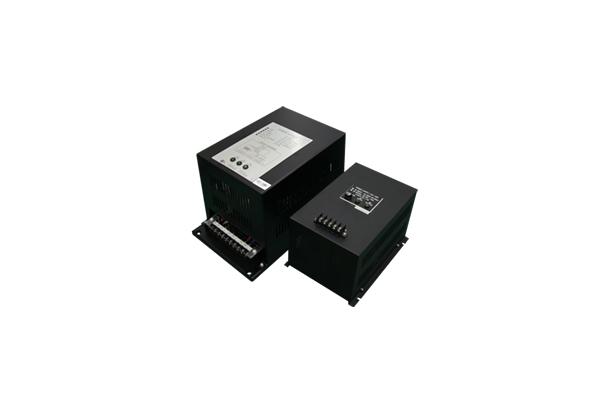

product Image
Power Supply Unit
Model Name
SA-132
Series
Power control Div.
Data
Catalog-Luxco-Power Supply Unit
Manufacturer information
provider logo
LUXCO

Electric electronic apparatus for Vessel & Industrial plant facility, Solar module manufacturing development

Problem with product info?
Update request
Manufacturer
LUXCO
Product Type
Machine
Brand
-
SKU
129203
Product Name
Power Supply Unit
Model Name
SA-132, SA-250, SA-520, SA-960
Size
-
Weight
-
Product Details

Output Voltage
NORNINAL DC 24V


The power supply unit is a device to convert the AC power to DC power.

It supplies DC 24V power by converting the single/three phase AC power, and can be used for whole industry.

As special features, it can supply constant power by using battery in case of AC black-out.

For user's convenience, the status of input/output is displayed on the front side of the unit.



Specifications

MODELINPUTOUTPUTSIZE(mm)TRANSFORMER
SA-132AC220V 1PH 60HzDC24V 5.5AW163 X H225 X D130INTERIOR
SA-250AC440V 3PH 60HzDC24V 10AW180 X H250 X D170INTERIOR
SA-520AC440V 3PH 60HzDC24V 20AW180 X H300 X D180INTERIOR
SA-960AC220V 3PH 60HzDC24V 40AW204 X H310 X D160EXTERIOR
