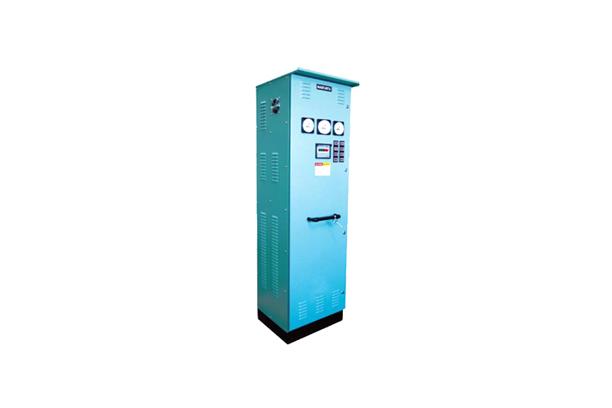

Battery Charger
type approval : BV
Detection LINE Voltage
DC : 24V, 110V
The controller of battery charger has two kinds of series of BCC-24 and ACM, and automatically executes floating charge and equalizing charge. It charges with high accuracy of ±1.5% in voltage, high efficiency and low ripple.
As the alarm circuit and the control circuit are integrated in one module that is attached on the front door, it is convenient for users to operate and to maintain.
As special features, the real time status for the product is discernible by watching the output voltage and the output current with the wide angle analog meter on the front door. And the perfect insulation between input and output is realized by applying the isolation transformers.
ORDERING INFORMATION
SPECIFICATIONS
| ENCLOSURE | MATERIAL | PC[Flame retardant] UL94 V-O / TRIREX 3025G10 / G / G [Reinforced] | |
| DIELECTRIC STRENGTH | 31kV/mm | ||
| COLOR | Black [maker standard] | ||
| TEMPERATURE / HUMIDITY | AMBIENT TEMPERATURE | -20 ~ +55℃ | |
| STORAGE TEMPERATURE | -20 ~ +85℃ | ||
| HUMIDITY | 45 ~ 85% R.H | ||
| IP GRADE : FRONT SIDE PROTECTION | PUSH BUTTON WITH LAMP | IP 44 | |
| LED LAMP | IP 44 | ||
| EXTERNAL CONNECTION T.B | METERIAL | INSULATION MATERIAL | PBT |
| FLAMMABISITY CLASS | UL-94 V-O | ||
| CONTECT PIN | Cu | ||
| WIRE SIZE [max.] | 2.5mm² | ||
| SPACING BETWEEN TERMINALS | 5.0mm | ||
| TEMPERATURE RANGE | -40 ~ +155℃ | ||
