Product Name Slim Timer
Model GTN-H1, GTN-H2, GTN-H3, GTN-H4, GTN-FL, GTN-WH, GTN-YD, GTN-F1, GTN-F2, GTN-M3, GTN-M4, GTN-S1, GTN-S2, GTN-S3, GTN-S4, GTN-S5, GTN-SF1, GTN-SF2, GTN-E1, GTN-E2, GTN-E3, GTN-4
Series Power control Div.
Catalog Catalog-Luxco-Slim Timer.pdf
Product Description

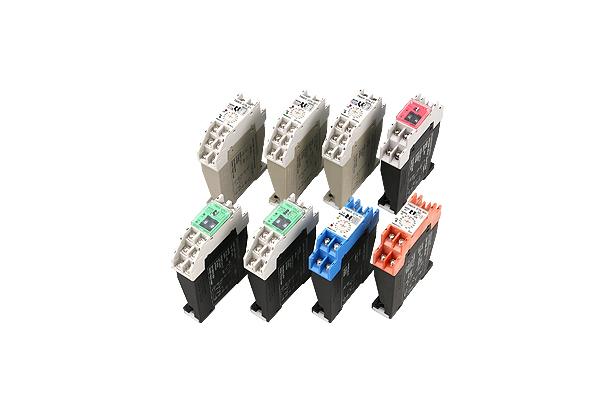

Slim Timer

Width : 22.2mn DIN, JIS standard satisfaction

Power on delay

Signal off delay

Signal on/off delay

Power on interval

flicker

winding heater

Y-D starting


Slim timer, as a device to control the precise time, is a slim type one embedding MICOM. The setting time is convenient and accurate by using a digital switch.

It enables the setting time to keep accurate under the change of vibration/temperature and has various model that can be used maximum AC 440V.

And the reduction of panel size and minimal weight can be realized in slim timer.

As special features, the exterior materials have high insulation level, light weight, fire retardant, shock resistant and chemical resistant characteristics to endure the harsh environment such as shipyard, power plant, steelworks, petrochemical complex and water power plant etc..




Ordering Information

The option Voltage [DC 12V, DV 48V, DC 240V] need 3 weeks after order given by customer.

ex) GTN-M3 [AV 100~240V)
      GTN- S1 [AC/DC 24V/AC 100-240V]

      WR : Wide range [0~99]
      FR : Fixed range [0~30]

Make a note of rating voltage separately.

Contact Output Type

(1c, 1C)

1c instant 1c delay

(2c)

2c delay

(1a,2c)

1a instant 2c delay







SPECIFICATIONS

VOLTAGE RATINGAC / DC 24V
50 / 60Hz
AC 100~240V
50 / 60Hz
DC 120VAC 380~480V
50 / 60Hz
DC 240V
VOLTAGE VARIATION80~120%85~110%80~120%85~110%85~110%
POWER
CONSUMPTION
[max.]
1c, 1c / 1a, 2a output2VA / 1.5W10VA2.5W10VA4.5W
2c output1.5VA / 1W7VA2.5W10VA2.5W
TIMING
SPECIFICATION
SETTING ACCURACYAbove 1sec : ±1% / Under 1sec : ±5~10%
TIME ADJUSTINGValue can be set by digital push or selector switch
EFFECT OF TEMPERTURE±0.5% [-20 TO 80℃] OF SETTING
TIME CHANGING DURING COUNTINGOutput will be changed according to charging time set
OUTPUT
CONTACT
CAPACITYDC 30V 5.0A [RESISTIVE]
2.0A [INDUCTIVE P.F=0.4]
AC 250V 5.0A [RESISTIVE]
2.0A [INDUCTIVE P.F=0.4]
DC 250V 1.2A[RESISTIVE]
AC 530V 3.0A[RESISTIVE]
1.2A [INDUCTIVE P.F=0.4]
AC 250V 8.0A [RESISTIVE]
3.2A [INDUCTIVE P.F=0.4]
DC 250V 1.2A [RESISTIVE]
MECHANICAL / ELECTICAL LIFE EXPECTANCY10,000,000 / 1000,000 [30 OPERATIONS / MIN.]
ENCLOSUREPC [polycarbonate] - Flame retardant [UL94 V-O]
- TRIREX3025G10 / Glass fiber reinforced
ABS - Flame retardant [UL94 V-O] - STAREX [ABS VH-0800]
DIELECTRIC STRENGTH2.5kV for 1 minute between live parts and enclosure
AMBIENT
CONDITIONS
AMBIENT TEMPERATURE RANGE-20~+55℃
STORAGE TEMPERATURE RANGE-25~+65℃
HUMDITY35~85% R.H
