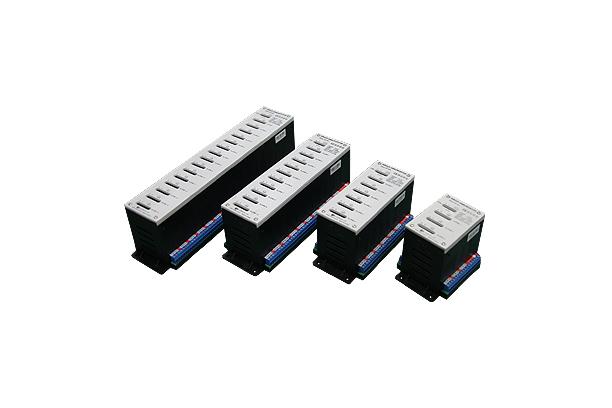

SA Series (Double Point)
Type approval : KR
The group annunciator of SA SERIES(DOUBLE POINT), as a high performance alarm device responding to the various alarm events, has the function satisfying the international standards, that is making the visible / audible alarm internally and the secondary alarm externally in case of detecting the abnormal signal.
The SA SERIES has two alarm circuits in one ALARM CARD and enables the installation space to reduce and has also the scalability up to 1,000 POINTS in maximum by using the extensible models.
As special features, the exterior materials have high insulation level, light weight, fire retardant, shock resistant and chemical resistant characteristics to endure the harsh environment such as shipyard, power plant, steelworks, petrochemical complex and water power plant etc..
Ordering information
ELECTRICAL SPECIFICATIONS
| POWER RATING | DC 24V | ||
| POWER VARIATION | DC 18~35V | ||
| TIMER | ACCURACY | Less than ±1% | |
| SETTING | Flickering range [V/R] : 1~3T /sec. Alarm delay range [V/R] : 0~30sec. | ||
| INPUT SIGNAL | TYPE | "NO" or "NC" contact [select by dip s.w on each alarm card] | |
| LOOP CURRENT | Below 10mA per each point | ||
| CABLE LENGTH | within 1000m [Above 0.75 SQ] | ||
| OUTPUT SIGNAL | VISUAL LAMP RATING | 2W [max.] | |
| OUTPUT CONTACT FOR BUZZER | DC 30V 1.0A [resistive] | ||
| DC 30V 0.4A [inductive p.f=0.4] | |||
| EXTENSION ALARM | SA SERIES | SSR OUTPUT : DC 24V 0.2A [max.] | |
| SBGA SERIES | DC 24V 2A [resistive] 0.8 [inductive p.f=0.4] AC 120V 1A [resistive] 0.4 [inductive p.f=0.4] | ||
| SECONDARY ALARM | "NC" dry contact | ||
| INSULATION RESISTANCE | Above 200㏁ between live part and enclosure | ||
| SURGE TRANSIENT | 1kV 50uVs line / line 0.5kV 50uVs line / line [IEC 1000-4-5 / 1995] | ||
LOAD CONSUMPTION TABLE (POWER SUPPLY : DC24V)
| MODEL | SA-6PSM | SA-12PSM | SA-20PSM | SA-30PSM |
| TOTAL CURRENT CONSUMPTION | Below 92mA | Below 135mA | Below 190mA | Below 260mA |
| RECOMMENDED POWER SUPPLY WITH VISUAL LAMP(2W) | Above 1.0A | Above 1.7A | Above 2.7A | Above 4.1A |
