  • LSL SYSTEMS

    Model

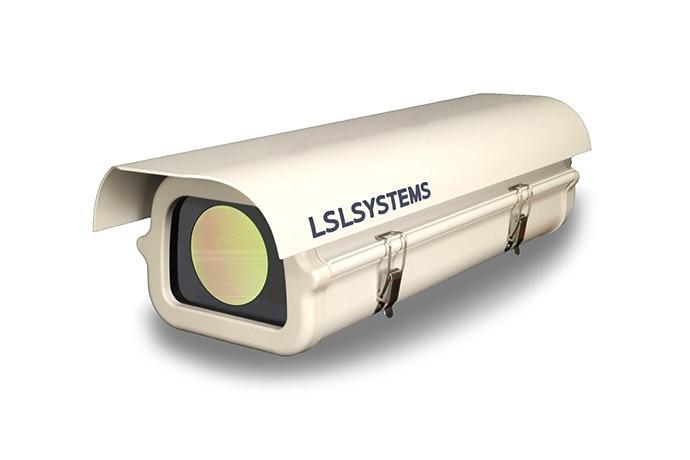

    ARGO6L17-WA75H
    Series
    Infrared Thermal Cameras For Security

    Product Description

    Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.

    Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.

    75mm Lens, Continuous Digital zoom

    IP network camera (ONVIF compliance)

    Auto Focus - High speed auto focus

    Zoom, Pan & Tilt - By only OnVif command over Ethernet.
      ※ No need RS-485/422 cable

    With a built-in Web server

    PoE(Power over Ethernet) - Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)

    8 kinds of color mode, 3 kinds of image filter in accordance with the environment





    Imaging Performance
    Detector TypeFocal Plane Array(FPA)
    Uncooled microbolometer,Vox
    Pixel Resolution640x480
    Spectral Range8-14 μm
    Average Transmission90%
    F#1
    FOV10.3°
    Focal Length75mm
    Measurement
    NETD<70mK
    Image Presentation
    Digital Output16bit digital
    Video streamingMPEG4, H.264
    Frame rate30Hz
    Environmental
    Operating Temperature-32°C ~ +70°C
    Storage Temperature-45°C ~ +75°C
    EncapsulationIP66
    Physical Characteristics
    Weight4.5Kg
    Size(L x H x W)562 x 149 x 178 (mm)
    Included Components
    Power SupplyPoE(Power over Ethernet)?
    ComplianceONVIF
    Recommended Range(Focal Length: 75mm)
     Human(1.7m)CAR(2.3m)
    Detection1,372m1,856m
    Recognition604m817m
    Identification302m408m



    LSL SYSTEMS  ARGO6L17-WA75H

    75mm Lens - Distance: 50M

    LSL SYSTEMS  ARGO6L17-WA75H 1

    75mm Lens - Distance: 400M
