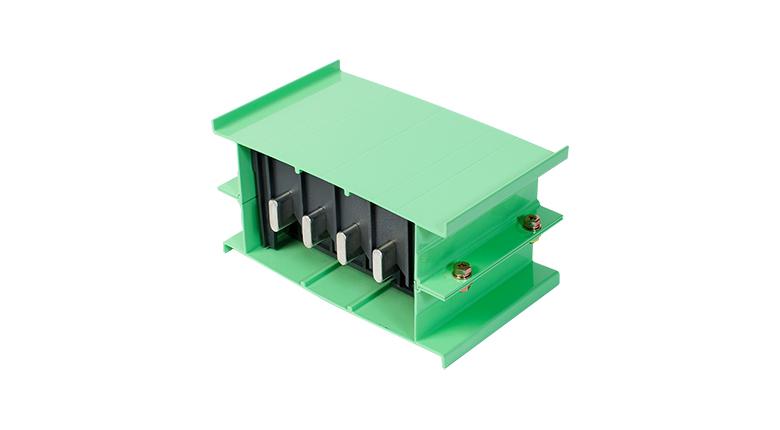

The LS Mini-way Bus duct is a bare conductor bus duct for air insulation with a low capacity for voltages under AC 1000V, and currents from 160A to 800A. The structure supports the conductor as a Class B insulation material, and when connected using a joint kit, the connected surface is large, minimizing contact resistance. Basically, IP54 level can be realized, and protection against leakage during use is feasible. It takes up less space compared to cables, is easy to manage, and load divergence is convenient.

Applications

• Power supply to data processing facilities in computer/server centers
• Power supply to panel boards of EPS rooms of apartments/multi-purpose buildings
• Low capacity trunk lines for big shopping centers, etc.
