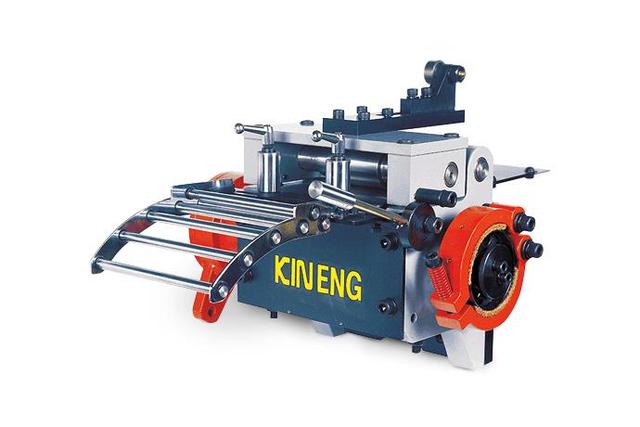

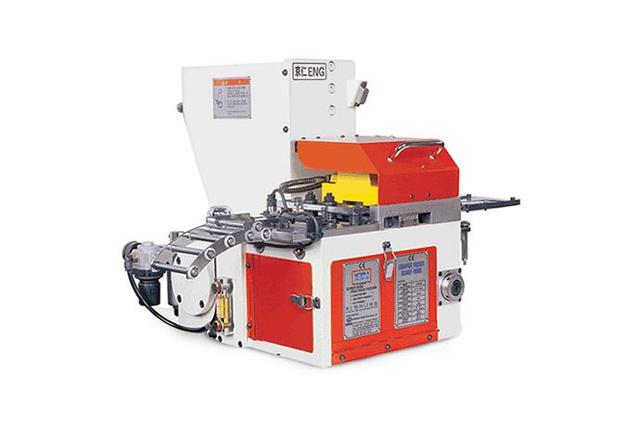

Product Name N/C Leveller Feeder S
Model KNLF-S-Series
Series Products
Catalog
Product Description



ㆍLevelling work is excellent regardless of material's uncoiling direction.
ㆍTwo in One. this means saving cost.
ㆍsaving space
ㆍworking efficiency is maximized because Feeding and Levelling are working at the same time.



Specifications 언코일러 레벨러 일체형

모델 Model KNLF-200S KNLF-300S KNLF-400S KNLF-500S
재료폭 Width mm Max. 200 Max. 300 Max. 400 Max. 500
재료두께 Thicknessmm 0.2T ~ 4.0T
코일내경 Coil Inner dia mm 380~550
릴리즈방식 Release Type Air Cylinder
속도 SPMSPM Max. 150
운전방식 Driving Method 수동 - 자동
Manual - auto



Specifications 언코일러 기본형

모델 Model KIL-200L KIL-300L KIL-400L KIL-500L
재료폭 Width mm Max. 200 Max. 300 Max. 400 Max. 500
재료두께 Thicknessmm 0.2T ~ 4.0T
릴리즈방식 Release Type Air Cylinder
속도 SPMSPM Max. 150
운전방식 Driving Method 수동 - 자동
Manual - auto
