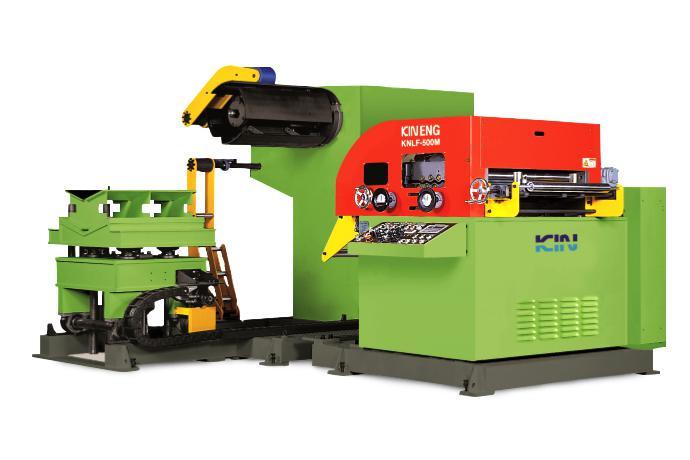

Product Name N/C Leveller Feeder
Model KNLF-M-Series
Series Products
Catalog
Product Description



ㆍSuitability of treating thin plates
ㆍFocusing on convenience and silence of the operation
ㆍApplying cam and link type release system
ㆍRealizing the accurate feeding and improving the quick release with the use of joints
ㆍIntegrating the main operational panel
ㆍEnhancing the straightness by supplementing the insertion guide roll
ㆍSelecting coil loop and various kinds of machines
ㆍSelection of the AC servomotor making it possible to maintain high precision and establish simple location and distance



모델ModelKNLF-400MKNLF-500MKNLF-600MKNLF-700MKNLF-800MKNLF-1000M
재료폭Material width mm4005006007008001000
재료두께Material thicknessmm0.8 ~ 3.2
코일내경Material in dia mm508
코일외경Material out diamm1500 (1800)
이송량Feeding pitchmm9999.99
이송속도Top speedm/min16
재료중량Coil weight kg3000 ~ 7000
드럼확축방식Drum expansion유압확축식 / Possible to Enlarge or Reduce Through Hydraulic Pressure
교정방식Straightening method상하 작동식 / Vertically Moving Operation
서보용량ain servo motor kw5.0 ~ 11.0
사용공기압Pneumatic pressure kg/㎠상하 작동식 / Vertically Moving Operation
운전방식Operating modePress & Feeder Master, Digital S/W Set
옵션OptionsCoil Car, End Shear, Drum Support, 오일도포장치 (Oil Spraying Device), 오일공급기 (Oil Supplying Device)
