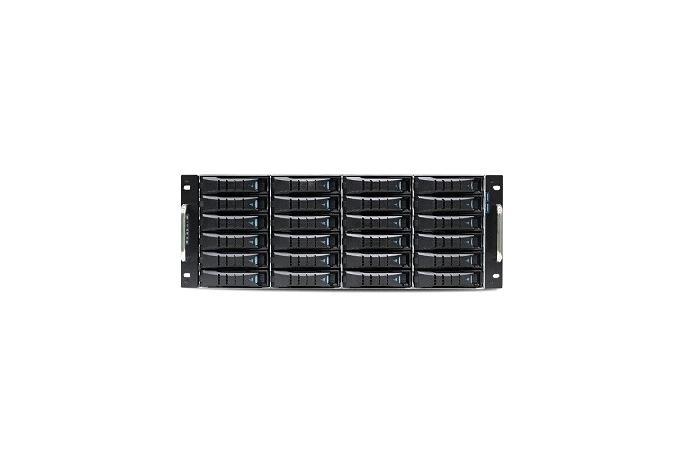

• 4U 36-Bay storage server
• Supports two Intel® Xeon® Processors E5-2600 v3 Product Family
• With Intel® C612 Series Chipset to provide
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• Two 10 GbE RJ45 ports



 Specification

Form factor

Dimensions 4U Rackmount, 175 x 483 x 645
Weight 40.4kg

Platform

Processor Intel Xeon E5-2600 v3 Processor
Chipset Intel® C612 Chipset

System Memory

Memory Type DDR4 ECC RDIMM, LRDIMM 16Dimm
Memory Capacity Up to 2048GB

Network interface

2 x Intel X540 10Gigabit Ethernet

Storage

Storage Interface 36 x 3.5” Hot-Swap SAS/SATA HDD(24 x Front, 12 x Rear)

Peripheral

USB 2 x USB 3.0 Ports(Front), 2 x USB 3.0 Ports(Back)
Serial 1 x Serial
VGA 1 x VGA Port(Rear)

Expansion & Option Card

PCIe 3.0 2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)

Display

LEDs Power LED, HDD LED, Status LED, System ID LED, NIC LED

Power

Watt 2 x 1200W AC PSU

Environmental Parameters

Temperature 0° - 35°C
Humidity(RH) 5% - 95% (38°C) non-condensing
