KOREA SPECIAL METAL

KOREA SPECIAL METAL

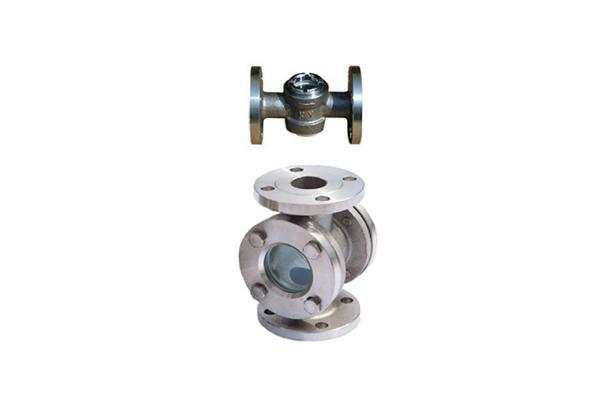

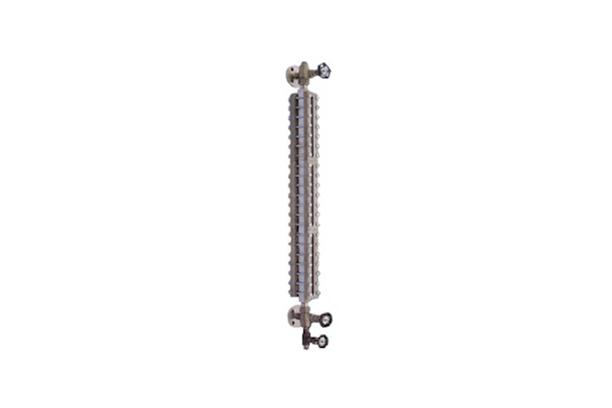

Sight Glass

Model

Series

Sight Glass


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

KSG5-1/2, SIDE TYPE


DIMENSIONS

SIZE A(")

10K / 20K

WEIGHT

(KG)

L

H

15(1/2)

250

85

KSG5-2

20(3/4)

250

85

25(1)

250

95

40(101/2)

250

125

50(2)

250

140

65(2-1/2)

250

142

KSG5-1

80(3)

250

176

100(4)

250

200

150(6)

250

252

200(8)

250

302

250(10)

250

380

300(12)

250

430




SPECIFICATION

Connections : Flanged End

Max. Pressure : 0 ~ 100kg/cm²g

Max. Temperature : 400℃

Glass : BOROSILICATE
