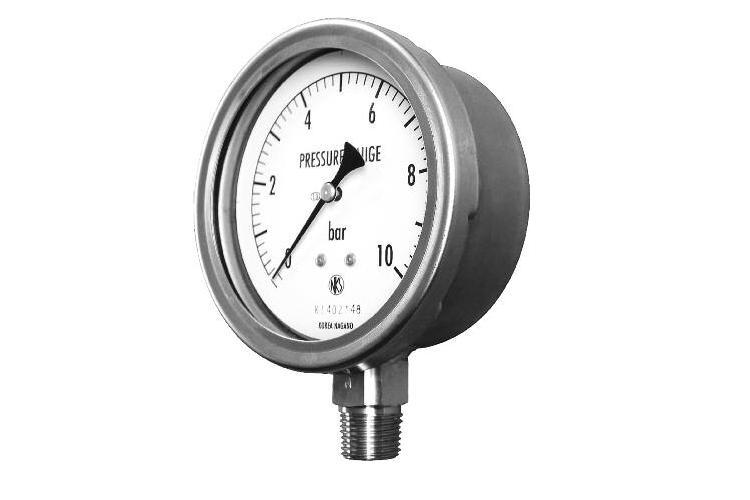

Dry Type - Solid front Pressure Gauge
Model Name
-
Series
Pressure Gauges
Data
GF42
Manufacturer information
provider logo
KOREA NAGANO

Manufacturer of Pressure Gauge and Pressure Sensors, Pressure Switch, Digital Pressure Gauge, Temperature Gauge and more

Problem with product info?
Update request
Manufacturer
KOREA NAGANO
Product Type
Machine
Brand
-
SKU
91358
Product Name
Dry Type - Solid front Pressure Gauge
Model Name
-
Size
-
Weight
-
Product Details

- OUTLINE
This is a high safety and excellently durable pressure
gauge applied to the petrochemical industry, nuclear
and various plants. Because of demonstrating excellent
atmospheric resistance, this pressure gauge can be
applied to process as well as extensive applications.

- FEATURES
• By applying the solid front(front wall type)case, in
case of gauge damage, pressure will be released
from the safety window of the rear of the gauge.
• By applying a durable pressure elements, excellent
durability is demonstrated even in the high range.
• The bayonet construction of the case shuts off air
and, additionally, the case is made of stainless-steel.
So, this pressure gauge demonstrates excellent
atmosphere resistance.
• This gauge has been designed in accordance with
the ANSI Standard B40, 1M Gauges-Pressure
Indicating Dial Type-Elastic Element.
• In case of selecting pressure gauge, choose the pressure
range which can be used in between 30~60% of
full scale, so that the gauge give its full capacity.
• Also should be confirmed weather the wetted parts
material is suit able for the fluid or not.
