The Republic of Korea

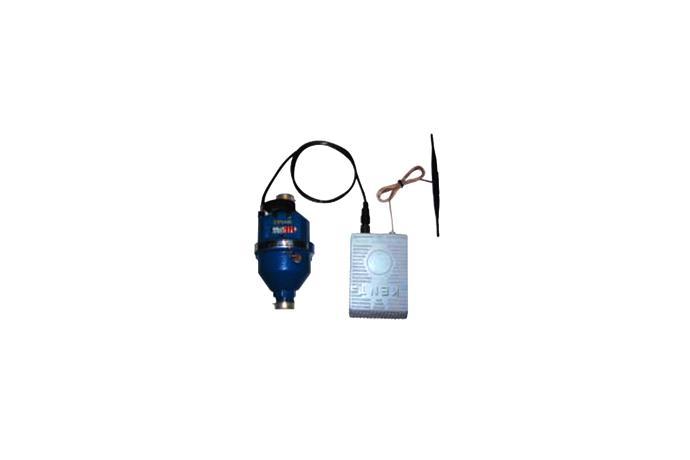

Korea Nent Meters Telewater System

TeleWater Collector Specofocation

ㆍ Water Meter : Pulse type meter
ㆍ Sensing Method : Pulse Sensor
ㆍ Communication Method : Low-powered,wireless communication
ㆍ Frequency Range : 400 ~ 900MHz
ㆍ Coding Format : Manchester
ㆍ Modulation : FSK
ㆍ Radiation Power : under 10mW
ㆍ Power : 3.6V DC, 19A(Lithium Battery)
ㆍ Lifetime of Battery
  -  One time check-up per month 4years
  -  One time check-up per day 6months
ㆍ Current Consumption(A) : TX:45 , RX:30 , Sleep:12
ㆍ Operational Temperature : -30℃~85℃
ㆍ Error Correction : BCH 3121
ㆍ Program : Upgradable
ㆍ Operation Method : Offline and Automatic metering
ㆍ Mode : Operation, Standby, Sleep
ㆍ Main Functions :
  -  Sensing pulse,
  -  Checking battery,
  -  Indicating leak,
  -  Channel distribution

TeleWater Detector & Repeater Specification

ㆍ PDA Processor Intel SA1110 32Bit RISC(206MHz)
ㆍ OS : WIN-CE 3.0
ㆍ Memory : 32MB(64MB)/32MB (RAM/ROM)
ㆍ Display : 3.5 Inch TFT 65,000 Color
ㆍ Dimension : 86X170X22(mm)
ㆍ Lifetime of Battery
  -  Normal function of Repeater 15 hours
  -  Stand-by 48 hours
ㆍ Input Devices : Touch Panel/Stylus Penn
ㆍ Operational Temperature and Humidity : -20℃~60℃5%~95% RH Non-Condensing
ㆍ Battery : Li-ion 1700mA(Rechargeable)
ㆍ Recharging Time : 4hours
ㆍ Adapter input voltage and frequency : 100V~240V/AC, 50/60Hz
ㆍ Wireless communication module : Low-power modem
ㆍ Wireless LAN, CDMA Modem(optional)
ㆍ Main Functions
  -  Collector installation and checking meter(Manual, Automatic)
  -  Set-up of area for collecting data
  -  Indication of the amounts of water used for 3 months, the average amounts of water and amounts difference
  -  Indication of battery status
  -  Potential leak of water network
  -  Set-up & modification of metering data and checking date
