Korea CLT

Korea CLT

Pilot Type

Model

Series

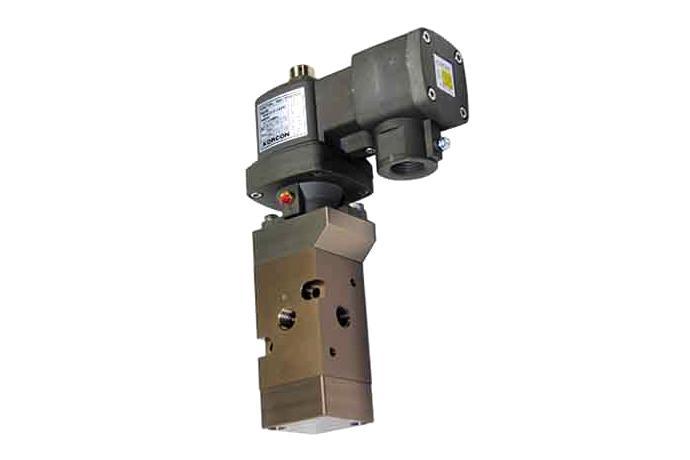

Explosion-Proof Valve


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Working Flow

Water, Air, Oil(50cst or less)

Fluid Temperature

-10 ~ 60 ℃

Ambient Temperature

-20 ~ 40 ℃

Working pressure range(Kg/㎠)

1.2 ~ 8

Body Meterial

Aluminum, brass

Seat Meterial

NBR / Option : Viton

orifice(mm)

1.2

Features

-Ex d IIC T6 IP65(KOSHA Certification)
- Operates without supply lubricating oil
-Manual operating is possble
-Namule mount type
-Compact type, high-flow resolution
-Easy maintenance
-Can use as 3Way valve
-Large and small actuator mounting
 braket configuration
-Piolt return type, high-speed



Inquiry
