  • KMC PRESS

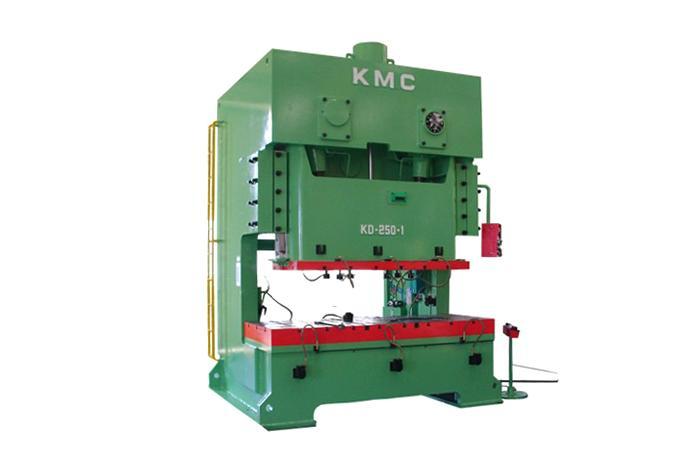

    C type Crank Press
    Model
    KD-110-1, KD-150-1, KD-200-1, KD-250-1, KD-300-1
    Series
    Mechanical Press

    Product Description

    KD Series / C Type Double Crank Press

    Capacity(Ton) 110~ 300

    - HIGHLY EFFICIENT WET TYPE CLUTCH BRAKE

    - HYDRAULIC OVERLOAD PROTECTOR DEVICE

    - SLIDE ADJUSTMENT DEVICE

    - CIRCULATION TYPE AUTOMATIC OIL LUBRICATING SYSTEM

    - MANUAL GREASE PUMP DEVICE

    - 2POINT 6 PHASES STRUCTURE

    - BROAD WORKING SPACE

    - STRONG FRAME GURANTEEING MOTIONAL PRECISION

    - SUITABILE FOR AUTOMATION AND RATIONALIZATION

    - PHOTOELECTRIC SAFETY DEVICE

    - AIR EJECTOR

    - FREE SET COUNTER

    - SUITABLE FOR VARIOUS SHEET MATAL PROCESSING SUCH AS BLANKING, PIERCING AND TAMPING,ETC.




    Standard Specifications

    SpeciflcarionUnitKD-110-1KD-150-1KD-200-1KD-250-1KD-300-1
    Capacityton110150200250300
    Limit of Capacitymm77777
    Strokemm180200250250300
    Number of Strokespm5040353530
    Die Heightmm340450480550600
    Adjustment of slidemm100100120120120
    Area of slidemm1000x5501600x5802000x6502100x7002400x900
    Area of Bolstermm1100x6802200x6502500x8502700x9202700x100
    Working heightmm900900100010001000
    Main Motorkwxp11x415x419x422x430x4
    Die Cushion
    Capacityton5X27X210X212.5X225
    Strokemm90100120130130
    Pad Areamm950X4001200X4201600X5001750X5501800X560
    Air PressureKg/cm²55555




    Product Information

    Features

    - Equipped With Wet Type clutch and brake system
    - Good Durability for long time continuous working
    - Better work ability for large size product
    - Good combination for Automation and Rationalization


    Selection

    1. V/S MOTOR
    2. DIE CUSHION
    3.  ANTI-VIBRATION UNIT
    4.  (Q.D.C) QUICK DIE CHANGE
    5.  ELECTRONIC GONIOMETER
    6.  KNOCK OUT DEVICE
    7.  AUTO TRANSFER DEVICE
    8. PLC SYSTEM( Programable Logic Controller )
