Manufacturer
K-SONIC
Product Type
Machine
Brand
-
SKU
60215
Product Name

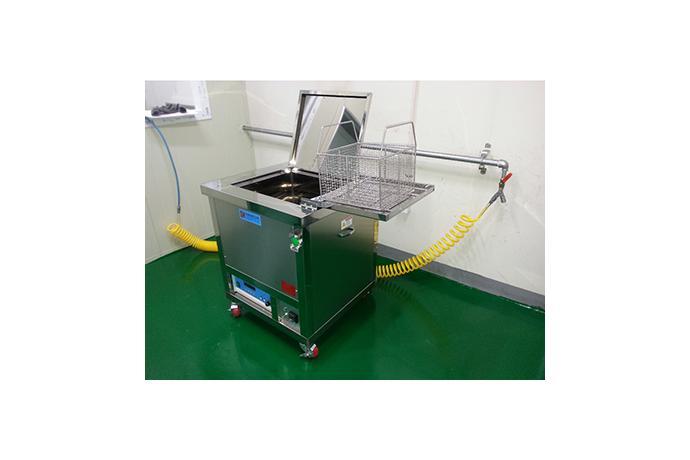

Single-Sump Ultrasonic Cleaner
Model Name
HKU-400W, HKU-600W, HKU-1000W, HKU-1200W, HKU-1500W
Size
-
Weight
-
Product Details
| Summary | It is the most common and basic type of ultrasonic cleaners and can completely remove foreign substances attached to the material to be cleaned by operating ultrasonic cleaning after depositing the material to be cleaned in the tank. |
| Division | This product is an integral single-bath type cleaner which is a type of vibration part, oscillation part, and control part is mounted inside the ultrasonic cleaner. It is cleaning equipment used in a semi-production line, laboratories, and companies where are specialized in diversified small-quantity production. |
| Use | * Cleaning of electrical and electronic parts * cleaning of precision machinery parts * cleaning of optical instruments and lenses * cleaning of medical instruments * cleaning before/after plating * laboratory |
Model Number | Tank Dimension (L x W x H) | Console Dimension (L x W x H) | Ultrasonic Power | Ultrasonic Frequency | Liquid Capacity | Amount of Heat |
| HKU-400W | 280*230*200 | 340*280*300 | 400 W | 28kHz , 40kHz | 12 L | 1,000W |
| HKU-600W | 300*270*250 | 380*320*350 | 600 W | 28kHz , 40kHz | 20 L | 1,000W |
| HKU-1000W | 400*350*250 | 520*450*350 | 1000 W | 28kHz , 40kHz | 35 L | 1,000W ~2,000W |
| HKU-1200W | 500*400*300 | 660*540*500 | 1200 W | 28kHz , 40kHz | 60 L | 1,000W ~2,000W |
| HKU-1500W | 500*500*350 | 760*700*700 | 1500 W | 28kHz , 40kHz | 87 L | 1,000W ~3,000W |
| Summary | It is the most common and basic type of ultrasonic cleaners and can completely remove foreign substances attached to the material to be cleaned by operating ultrasonic cleaning after depositing the material to be cleaned in the tank. |
| Division | * It is free from space restraints because it is a type that oscillator and control part are separated from each other. * It is easy to use with low output. * In the case of detachable type, its production cost is lower than that in the integral type. |
| Features | * It was designed to be easy to wash small quantity and light products. * It is cleaning equipment used in a semi-production line, laboratories, and companies where are specialized in diversified small-quantity production. * You can just select or customize products according to various production processes, the type of material to be cleaned, and purpose of use. |
| Use | * Cleaning of electrical and electronic parts * cleaning of precision machinery parts * cleaning of optical instruments and lenses * cleaning of medical instruments * cleaning before * after plating * laboratory |
Model Number | Tank Dimension (L x W x H) | Console Dimension (L x W x H) | Ultrasonic Power | Ultrasonic Frequency | Liquid Capacity | Amount of Heat |
| HKU-400W | 280*230*200 | 340*280*300 | 400 W | 28kHz , 40kHz | 12 L | 1,000W |
| HKU-600W | 300*270*250 | 380*320*350 | 600 W | 28kHz , 40kHz | 20 L | 1,000W |
| HKU-1000W | 400*350*250 | 520*450*350 | 1000 W | 28kHz , 40kHz | 35 L | 1,000W ~2,000W |
| HKU-1200W | 500*400*300 | 660*540*500 | 1200 W | 28kHz , 40kHz | 60 L | 1,000W ~2,000W |
| HKU-1500W | 500*500*350 | 760*700*700 | 1500 W | 28kHz , 40kHz | 87 L | 1,000W ~3,000W |
| Summary | Custom-made single-bath type ultrasonic cleaner Explosion-proof ultrasonic cleaners are a type of custom-made single-bath type ultrasonic cleaners. In addition, it has been manufactured variously according to its usage, working environment, and the request of customers. |
| Division | It is ultrasonic cleaners that can be used in an explosion-proof area. The equipment is classified as a single-bath type, but its configuration is very complex, requiring a high level of skill. |
| Features | It is aimed to prevent the risk of explosion by using ultrasonic cleaners in an explosion-proof area by using a structure in which a storage gas is injected into the vibrator vessel to maintain a constant pressure, so that the combustible gas does not flow into the inside. |
| Use | It has a special purpose of being used in the place where there is danger of explosion due to gas or vaporization |
