K Industrial

K Industrial

Continuous PU, PIR sandwich panel line

Model

Series

Sandwich Panel Line


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

The continuous PU, PIR sandwich panel line, which is made by KINDUS who was the first in S. Korea to success localization of the whole equipment, is manufactured based on a higher technical level all over the process throughout design, manufacturing, installation and commissioning.

Our sandwich panel production line system is a fully automation equipment system to produce various shapes of sandwich panels using a rigid-polyurethane foam or polyisocyanurate as a core material which is known as a top insulation in nowadays with low heat conductivity, heat reserving, anti-sweating, high strength durability and availability at construction site.

KINDUS’s polyurethane and polyisocyanurate sandwich panel line is composed as follows;


Sandwich panel line Composition


Step 1. Decoiling system
Step 2. Roll forming system
Step 3. PU/PIR foaming system
Step 4. Double belt slat conveyor(caterpillar) system
Step 5. Cutting system
Step 6. Cooling system
Step 7. Stacking system
Step 8. Wrapping system

 Moreover, KINDUS, we can manufacture a complete set of continuous PU, PIR sandwich panel line by our own technology include PU/PIR foaming system as well as Pentane mart to use it as a blowing agent. In this regard, we can supply 100% perfect supports/services, from A to Z, to our clients.

 Our continuous PU, PIR sandwich panel line is already recognized its value by exporting to European country with CE and other major sandwich panel line producing companies at domestic and foreign, KINDUS, we will keep trying for development in accordance with customer’s needs for the high quality sandwich panels.



General Specification of sandwich panel line

Kind of products

 Interior wall, Exterior wall, Corrugated roof, Siding, Metal, Tiled roof and more

Density of core material

 Standard 35K±5 · 40K±5

Production speed

 Average 4~12m/min

Annual capacity

 About 1,000,000㎡

Necessary dimension

 Approximately W20m x L120m x H7m

Required electric power

 About 400kw

Required air pressure

 Minimum 6~7bar


Currently, KINDUS, we had become not only the biggest Korean sandwich panel machinery manufacturing company, but also one of major sandwich panel production(EPS, MW, PU/PIR) company with 4 continuous sandwich panel production lines.

In this regard, KINDUS, we can provide a special and differentiated service to all our clients that supplying production line along with various techniques and know-hows which are very useful to maintain and operate the equipment in actual work site.



­

­

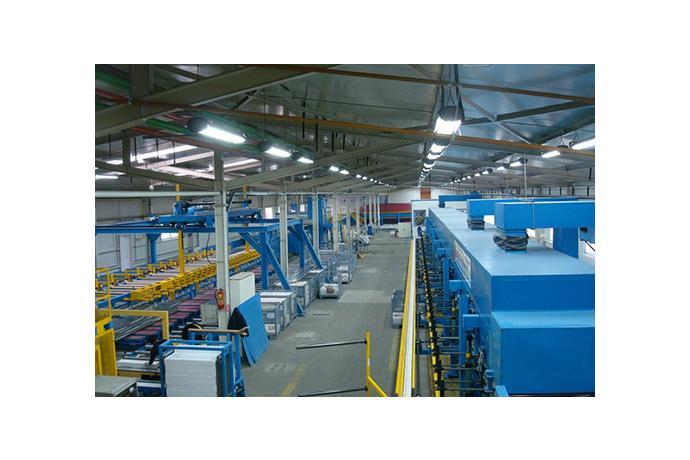

Sandwich panel line reference photos

K Industrial Continuous PU, PIR sandwich panel line
