Special Feature
* Built-in pulse function
* Selectable various functions
* High-performance direc-current TIG arc welder
* Built-in remote control function
* Suitable to automatic line
* Excellent performance for thin, medium, or thick plates
* Possible single-phase or triple-phase input / * 220V/380V/440V combined use
|
 Specification  |
|||||||||||||||||||||||
|
 MODE  |

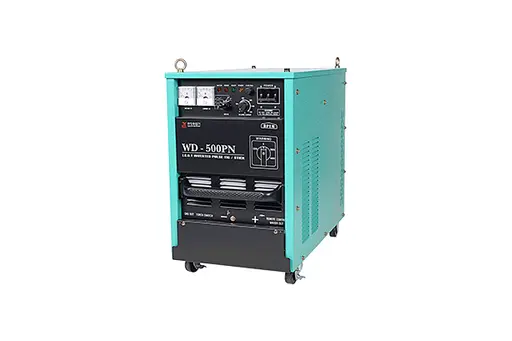

 WD - 500PN  |
||||||||||||||||||||||
|
 Process  |
 TIG  |
 STICK  |
|||||||||||||||||||||
|
 Output Current  |
A |
 3 Phase -  |
 500  |
 290  |
|||||||||||||||||||
| 1 Phase - | 320 | ||||||||||||||||||||||
|
 Input Voltage  |
V |
 220V / 380V / 440V ±10%  |
|||||||||||||||||||||
|
 Rated Frequency  |
Hz |
 50 / 60  |
|||||||||||||||||||||
|
 Rated Input  |
KVA |
 17.1  |
|||||||||||||||||||||
|
 Rated load Voltage  |
 V  |
 30  |
|||||||||||||||||||||
|
 No load Voltage  |
 V  |
 67  |
|||||||||||||||||||||
| Duty Cycle | % | 50 | |||||||||||||||||||||
|
 Output Current range  |
 A  |
 5~500  |
10~290 | ||||||||||||||||||||
|
 Pulse Current range  |
 A  |
 -  |
|||||||||||||||||||||
|
 Start Current range  |
 A  |
 5~500  |
|||||||||||||||||||||
|
 Crater Current range  |
 A  |
 5~500  |
|||||||||||||||||||||
|
 Gas Pre flow  |
 sec  |
 0.1~1  |
|||||||||||||||||||||
|
 Gas After flow  |
 sec  |
 3~25  |
|||||||||||||||||||||
|
 Up Slope  |
 sec  |
 0.1~5  |
|||||||||||||||||||||
|
 Down Slope  |
 sec  |
 0.1~5  |
|||||||||||||||||||||
|
 Arc Spot  |
 sec  |
 0.1~5  |
|||||||||||||||||||||
|
 Pluse Frequency  |
 Hz  |
 LOW : 0.5~25, HI : 10~500  |
|||||||||||||||||||||
|
 Pluse Width  |
 %  |
 15 ~ 85  |
|||||||||||||||||||||
|
 Crater control  |

  |
 Off, On, Repeat  |
|||||||||||||||||||||
|
 Dimension (WxDxH)  |
 mm  |
 360 x 623 x 580 (360 x 693 x 615)  |
|||||||||||||||||||||
|
 Weight  |
 kg  |
 51.5  |
|||||||||||||||||||||
※ Product specifications can be changed unexpectedly for product performance improvement.
※ Remote control is separate way option.
