Special Feature
* Built-in pulse function
* Selectable various functions
* High-performance direc-current TIG arc welder
* Built-in remote control function
* Excellent performance for thin, medium, or thick plates
* Possible single-phase or triple-phase input
|
 Specification  |
|||||||||||||||||||||||
|
 MODE  |

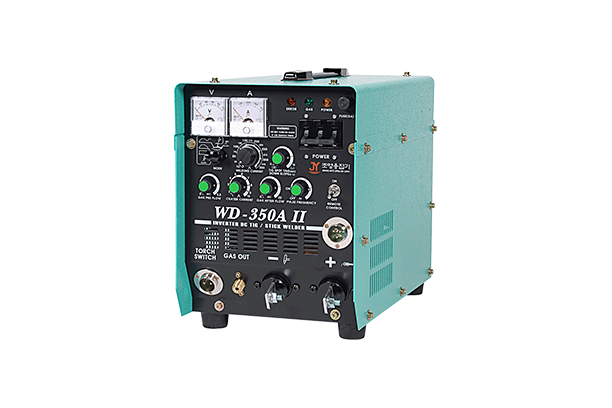

 WD-350A II (220V)  |
WD-350A II (220/380/440V) | |||||||||||||||||||||
|
 Process  |
 TIG  |
STICK |
 TIG  |
STICK | |||||||||||||||||||
| Output Current | A | 350 | 200 | 350 | 200 | ||||||||||||||||||
|
 Input Voltage  |
V |
 220 ±10%  |
220V / 380V / 440V ±10% | ||||||||||||||||||||
|
 Rated Frequency  |
Hz |
 50 / 60  |
50 / 60 | ||||||||||||||||||||
|
 Rated Input  |
KVA |
 10.2  |
7.3 | 10.2 | 7.3 | ||||||||||||||||||
|
 Rated load Voltage  |
 V  |
 24  |
28 | 24 | 28 | ||||||||||||||||||
|
 No load Voltage  |
 V  |
 70  |
70 | ||||||||||||||||||||
| Duty Cycle | % | 50 | 50 | ||||||||||||||||||||
|
 Output Current range  |
 A  |
 10~ 350  |
10 ~ 200 | 10~ 350 | 10 ~ 200 | ||||||||||||||||||
|
 Gas Pre flow  |
 sec  |
 0.1 ~ 0.5  |
0.1 ~ 0.5 | ||||||||||||||||||||
|
 Gas After flow  |
 sec  |
 0.1 ~ 22  |
0.1 ~ 22 | ||||||||||||||||||||
|
 Down Slope  |
 sec  |
 S ~ L(Short ~ Long)  |
S ~ L(Short ~ Long) | ||||||||||||||||||||
| Arc Spot | sec | 0.1 ~ 10 | 0.1 ~ 10 | ||||||||||||||||||||
|
 Pluse Frequency  |
 Hz  |
 3 ~ 12  |
3 ~ 12 | ||||||||||||||||||||
|
 Pluse Width  |
 %  |
 50  |
50 | ||||||||||||||||||||
|
 Crater control  |

  |
 Off, On, Repeat  |
Off, On, Repeat | ||||||||||||||||||||
|
 Dimension (WxDxH)  |
 mm  |
 263 x 454 x 352  |
263 x 454 x 352 | ||||||||||||||||||||
|
 Weight  |
 kg  |
 21.6  |
22.6 | ||||||||||||||||||||
※ Product specifications can be changed unexpectedly for product performance improvement.
※ Remote control is separate way option.
