Special Feature
* The best performance for medium or thick plate
* Securing the highest profitability with energy-saving
* High use-rate and soft welding property
* Possible single-phase or triple-phase input
* Built-in electric shock prevention function
* Use welding rod 4.0Ø~5.0Ø(Long welding rod)
* Possible single-phase or triple-phase input
|
 Specification  |
|||||||||||||||||||||||
|
 MODE  |

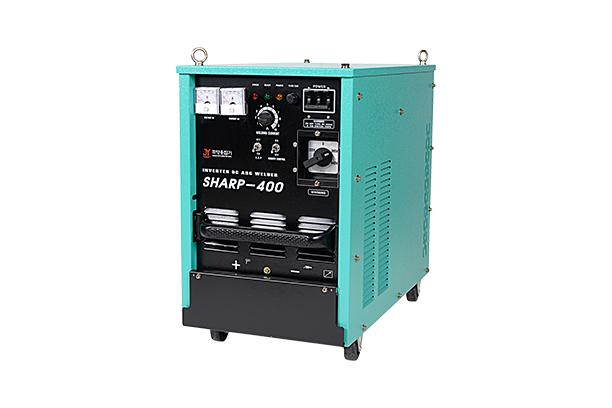

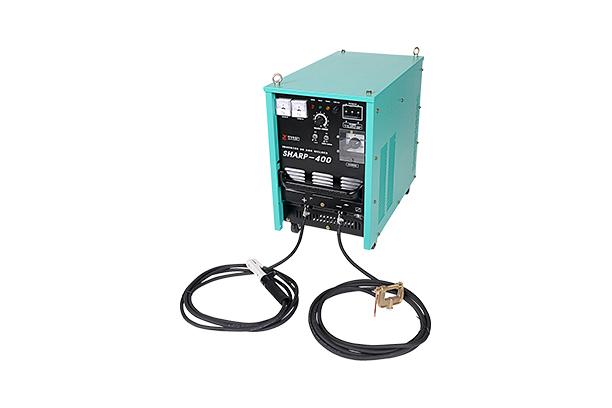

 SHARP-400  |
||||||||||||||||||||||
| Output Current | A | 300 | |||||||||||||||||||||
|
 Input Voltage  |
V |
 1/3 Phase , 220/380/440V ± 10%  |
|||||||||||||||||||||
|
 Rated Frequency  |
Hz |
 50 / 60  |
|||||||||||||||||||||
|
 Rated Input  |
KVA |
 17.8  |
|||||||||||||||||||||
|
 Rated load Voltage  |
 V  |
 36  |
|||||||||||||||||||||
|
 Output Current range  |
 A  |
 30-400  |
|||||||||||||||||||||
|
 Duty Cycle  |
 %  |
 50  |
|||||||||||||||||||||
|
 Controler  |

  |
 I.G.B.T  |
|||||||||||||||||||||
|
 Dimension (WxDxH)  |
 mm  |
 360 x 623 x 580(360 x 693 x 615)  |
|||||||||||||||||||||
|
 Weight  |
 kg  |
 48.5  |
|||||||||||||||||||||
※ Product specifications can be changed unexpectedly for product performance improvement.
※ Remote control is a separate way option.
