Welding M/C manufacturer, DC arc welder, TIG, Argon, CO2, MAG welder, Plasma cutter, Mixed type gas welder and more
Special Feature
* The best performance for medium or thick plate
* Securing the highest profitability with energy saving
* High use-rate and soft welding property
* Possible single-phase or triple-phase input
* Built-in electric shock preventin function
* Use welding rod 4.0Ø~5.0Ø(Long welding rod)
* Possible single-phase or triple-phase input
|
 Specification  |
|||||||||||||||||||||||
|
 MODE  |

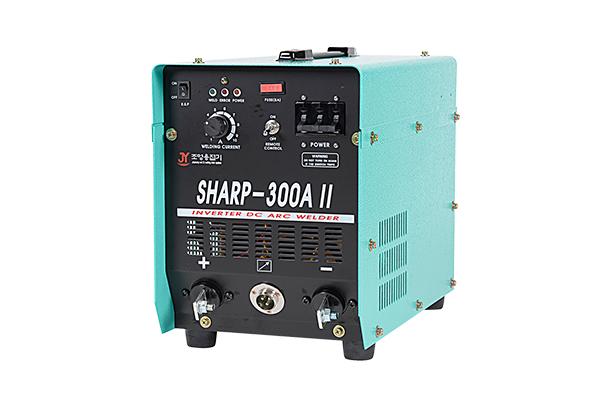

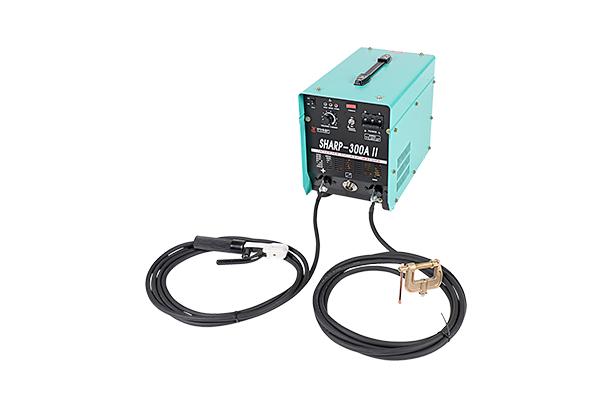

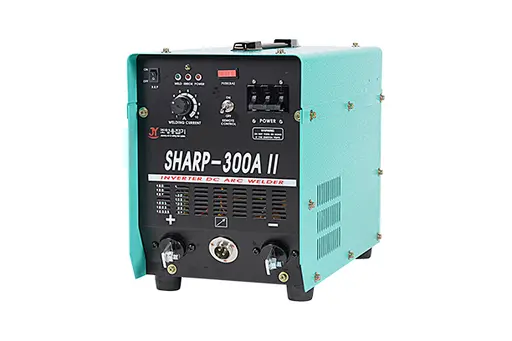

 SHARP-300A II  |
||||||||||||||||||||||
| Output Current | A | 300 | |||||||||||||||||||||
|
 Input Voltage  |
V |
 1/3 Phase , 220/380/440V ± 10%  |
|||||||||||||||||||||
|
 Rated Frequency  |
Hz |
 50 / 60  |
|||||||||||||||||||||
|
 Rated Input  |
KVA |
 11.2  |
|||||||||||||||||||||
|
 Rated load Voltage  |
 V  |
 32  |
|||||||||||||||||||||
|
 Duty Cycle  |
 %  |
 50  |
|||||||||||||||||||||
|
 Dimension (WxDxH)  |
 mm  |
 260 x 460 x 350  |
|||||||||||||||||||||
|
 Weight  |
 kg  |
 22  |
|||||||||||||||||||||
※ Product specifications can be changed unexpectedly for product performance improvement.
※ Remote control is separate way option.
