Special Feature
* The best performance for medium or thick plate
* Securing the highest profitability with energy saving
* High use-rate and soft welding property
* Possible single-phase or triple-phase input
* Built-in electric shock preventin function
* Use welding rod 4.0Ø~5.0Ø
* Possible single-phase or triple-phase input
|
 Specification  |
|||||||||||||||||||||||
|
 MODE  |

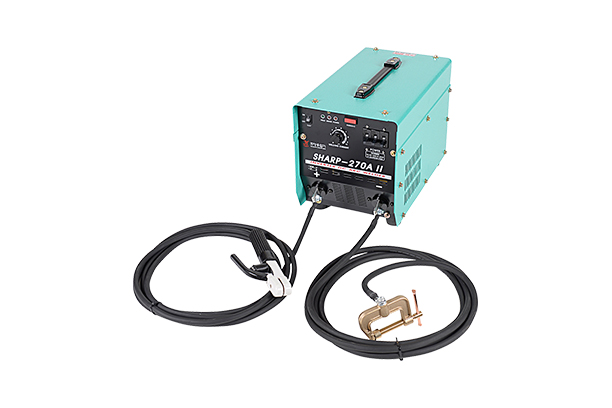

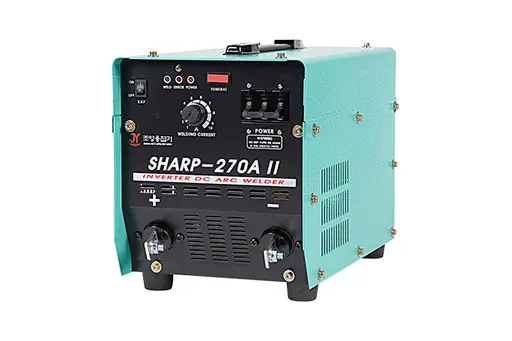

 SHARP-270A II  |
||||||||||||||||||||||
| 3 Phase | 1 Phase | ||||||||||||||||||||||
| Output Current | A | 270 | 230 | ||||||||||||||||||||
|
 Input Voltage  |
V |
 220V ± 10%  |
|||||||||||||||||||||
|
 Rated Frequency  |
Hz |
 50 / 60  |
|||||||||||||||||||||
|
 Rated Input  |
KVA |
 10.4  |
9.3 | ||||||||||||||||||||
|
 Rated load Voltage  |
 V  |
 30.8  |
29.2 | ||||||||||||||||||||
|
 Duty Cycle  |
 %  |
 50  |
|||||||||||||||||||||
|
 Dimension (WxDxH)  |
 mm  |
 250 x 445 x 295  |
|||||||||||||||||||||
|
 Weight  |
 kg  |
 19  |
|||||||||||||||||||||
※ Product specifications can be changed unexpectedly for product performance improvement.
