Manufacturer
Joong Ang
Product Type
Machine
Brand
-
SKU
67258
Product Name

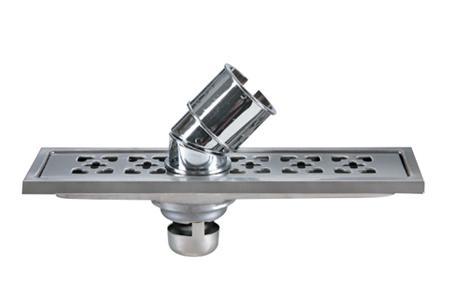

Trench with drain (80 for basin washing machine)
Model Name
-
Size
-
Weight
-
Product Details
Specification
■ Material : stainless 304-27
■ Application : This is for the drains of a basin
■ By inserting the trap into this product, stinks from the outlet can be prevented effectively.
Due to the fact that this model is compatible with the Ø50 and Ø65pipe, you could choose a pipe freely, according to your purpose
| Type | Pipe Size | Unit:mm | ||||||
| P-A | P-B | W1 | W2 | L1 | L2 | L3 | H | |
| A Type | Ø50 | Ø65 | 65 | 80 | 283 | 300 | 120 | 20 |
| B Type | Ø50 | Ø65 | 65 | 80 | 383 | 400 | 120 | 20 |
| C Type | Ø50 | Ø65 | 65 | 80 | 483 | 500 | 120 | 20 |
| D Type | Ø50 | Ø65 | 65 | 80 | 583 | 600 | 120 | 20 |
| E Type | Ø50 | Ø65 | 65 | 80 | 683 | 700 | 120 | 20 |
