JOKWANG ILI

JOKWANG ILI

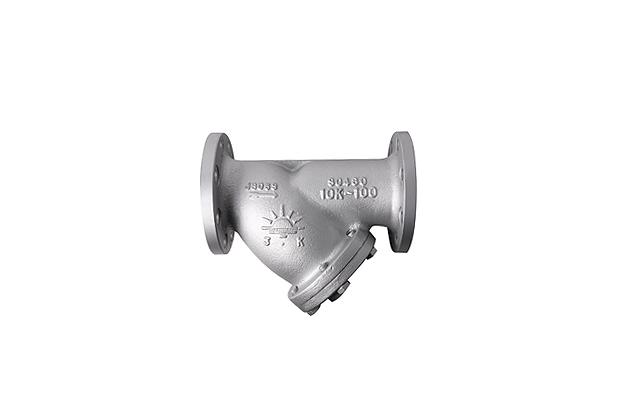

Strainer (Y-Type)

Model

Series

Strainer


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

JST-YF21 (Y-Type)

This item is used to remove the scale and impurities from various pipelines. It is also attached to the front of various relief valves, control valves and steam trap devices to prevent errors or breakdowns in machinery caused by impurities. The screen has been designed with sufficient filtering surface, taking into account the undermined flow caused by the blockages triggered from impurities.



Product specification

MODEL APPLICABLE LIQUIDS CORRECT TEMPERATURE TO BE APPLIED (°C) CORRECT PRESSURE TO BE APPLIED MPA (KGF/CM²) HOW TO CONNECT THE ITEM SCREEN MATERIAL
MAIN BODY KEY PART
JST-YF21 Steam
Gas
Liquid
Max. 250 Max. 2.0
(Max. 20.0)
JIS B 2220 10K,20K
FF/RFFlanged
Single net/ double net Cast Steel,
Stainless Steel
Stainless Steel
Max. 3.0
(Max. 30.0)
JIS B 2220 30K
RFFlanged
