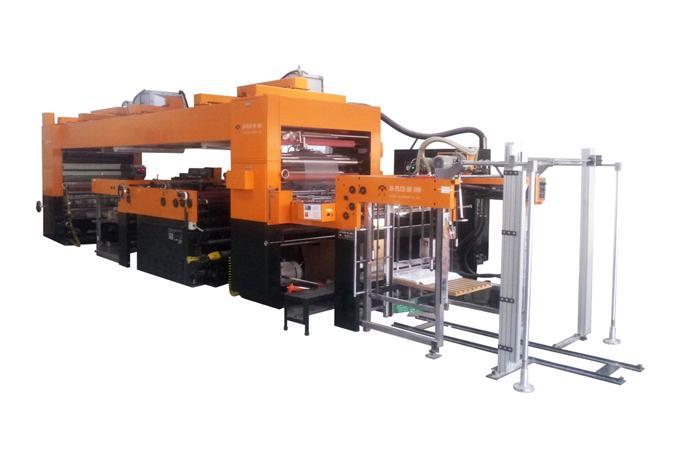

product Image
Industrial Laminating Machine
Model Name
JS-FLCD-BS-SERIES
Series
Industrial Laminating Machine
Data
-
Manufacturer information
provider logo
JISUNG MACHINERY

Laminating machine, Film laminating machine and more

Problem with product info?
Update request
Manufacturer
JISUNG MACHINERY
Product Type
Machine
Brand
-
SKU
30119
Product Name
Industrial Laminating Machine
Model Name
JS-FLCD-BS-SERIES
Size
-
Weight
-
Product Details

▣ Combination Type (Film : General opp, Glueless, Thermal)
◎ The machine does work by all OPP films such as general bopp, Glueless film, and Thermal film.
◎ The machine does not effect from film supply, and it is possible to cover three kind films.
◎ For using Glueless film and Thermal film, it makes a save time to ready to work by film air-shape and it saves film than General OPP film.
◎ A quality and good productivity has improved to achieve maximum by a size with durability of heating roller.
◎ For accurate thermometric, temperature sensor attach inside the heating roller.
◎ Hot-air drying makes to increase process speed by special making dry method of construction
◎ Aerometry mechanics technology does protection from elasticity of thin film, transformation, and slant to one side.
◎ Machine does not make a drop of water because by Rotation and ventilation fan.



JS-FLCD-BS-1020
Max.paper size(L) x (W) (mm)720 x 1020
Min.paper size(L) x (W) (mm)260 x 400
Machine speed(m/min)20 ~ 50
Machine size(L) x (W) x (H) (mm)11525 x 1940 x 2780
Paper range(g/㎡)100 ~ 500
Max.pressure(kg/㎠)300
Total Heater volume(kw)81
Power consumption(kw)20
Machine weight(ton)10.5

JS-FLCD-BS-1090
Max.paper size(L) x (W) (mm)788 x 1090
Min.paper size(L) x (W) (mm)320 x 470
Machine speed(m/min)20 ~ 50
Machine size(L) x (W) x (H) (mm)11675 x 20400 x 2780
Paper range(g/㎡)100 ~ 500
Max.pressure(kg/㎠)300
Total Heater volume(kw)81
Power consumption(kw)20
Machine weight(ton)11

JS-FLCD-BS-1250
Max.paper size(L) x (W) (mm)890 x 1250
Min.paper size(L) x (W) (mm)360 x 470
Machine speed(m/min)20 ~ 50
Machine size(L) x (W) x (H) (mm)11840 x 2190 x 2780
Paper range(g/㎡)100 ~ 500
Max.pressure(kg/㎠)300
Total Heater volume(kw)90
Power consumption(kw)25
Machine weight(ton)12
