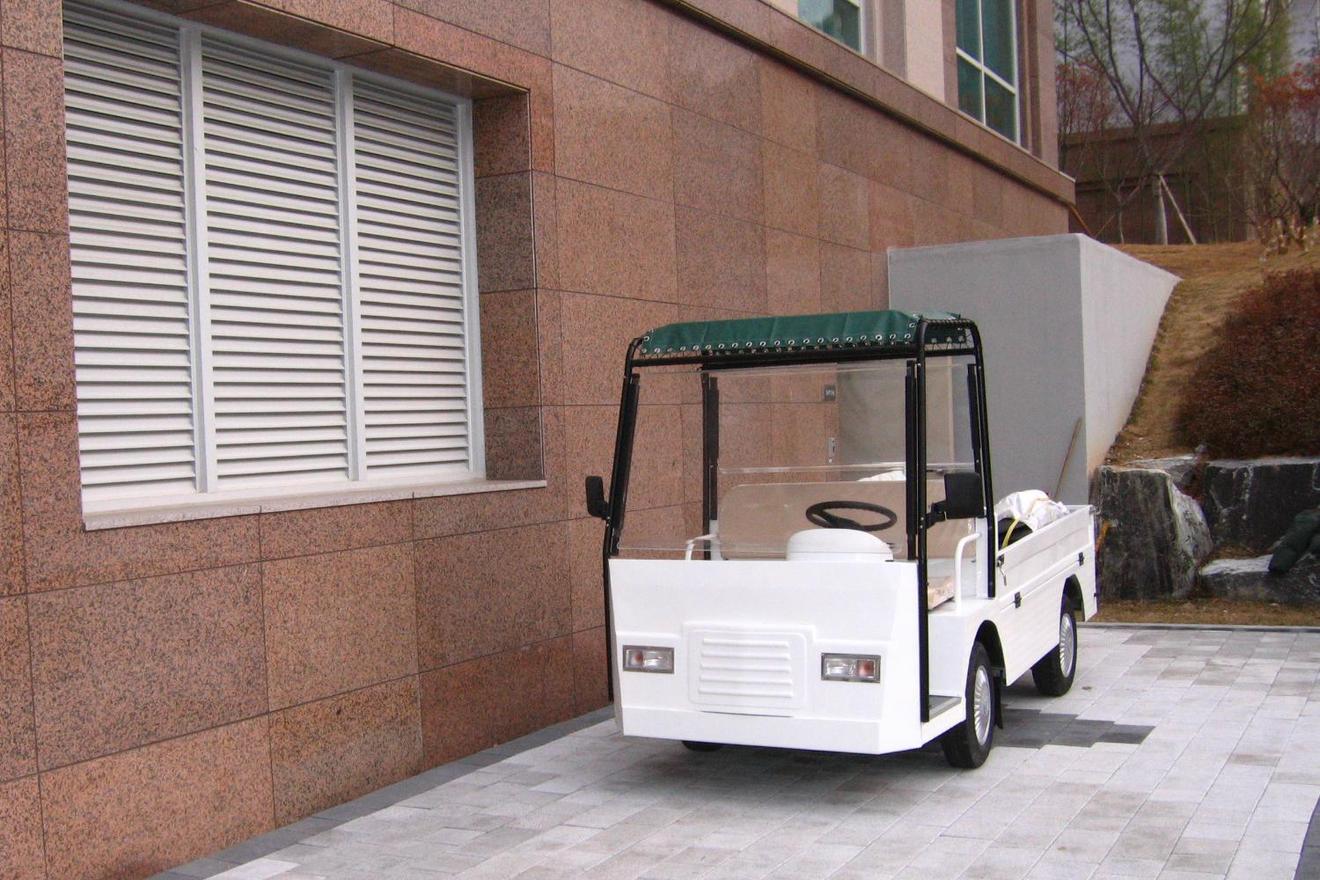

Product Name 전동트럭
Model JHC023
Series 전기자동차
Catalog
Product Description

규격 : 3475*1390*1200
적재함 : 2200*1300*500
모터 : DC48V 5000W
컨트롤러 : 커티스1205
배터리 : T105*8
주행거리 : 70Km
속도 : 35Km/h
회전반경 : 4.3m
등판능력 : 20%
적재중량 : 1000kg
차체중량 : 1100kg

몸체재질 : Steel framework + Steel plate body
의자등받이와 쿠션재질 : Sponge + artificial leather
의자팔걸이재질 :  Steel pipe
바닥재질 : Bamboo board+ plastic
사이드미러 : 2개
라이트 : 전면 - 2 Headlights, 2 front turn signals;
            후면 - 2 rear turn signals, 2 brake lights;
대쉬보드 : Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, ignition key; Headlight switch, turn signal switch, horn button;
Horn and reverse alarm \
Cup drinker holder : 1pc
스티어링시스템 : rack and pinion steering system
브레이크시스템 : front and rear drum pneumatic brake system
전면서스팬션시스템 : independent suspension, cylinder pneumatic vibration absorber
후면서스팬션시스템 : integrated rear end, steel plate spring suspension, cylinder pne umatic vibration absorber
트랜스미션시스템 : Clutch, 4F+1R gear box, transmission shaft
타이어 : 145/80-R12
Hub cover
충전기 : input 110V~230V, 50Hz/60Hz, output 48V, 25A
