Product Detail
Tractor Attached Type Seeder JPH, JTS1500S details Tractor Attached Type Seeder JPH, JTS1500S details

Tractor Attached Type Seeder

Roll Type

JPH, JTS1500S

Urgent? then use Komachine Service
Description

롤식 파종기 특징

- Seed: fine seed (shepherd's purse, corn rose), normal seed (leafy vegetables, herbs), large or special seed (ginseng, bean corn)
- Nursey plant and direct seeding are possible
- One-touch function and seeding roll change method by seed(11 levels of planting interval distance)
- Hopper vibrator option
- Harvest in equally high-quality and reduction of seeds and labor costs
- Seed storing function when backing
- Seeding roll is made of a special material proper for discharge of static electricity

Specification

Model nameJPHInter row spacing(cm)Minimum 16cm
TypeTractor attached typeIntra row spacing(cm)2~51
Dimension(mm)(L*W*H) 860*180*590/1 seedDepth control(cm)1~3
Weight(kg)11kg / 1 seedNumber of seedAbove 4
Work efficiencyJPH (10 seeds): 4,000㎡ (40a, 1,210 pyong (around 4,000 square meter)) / 1h ≪ 2.5㎞ / 1h

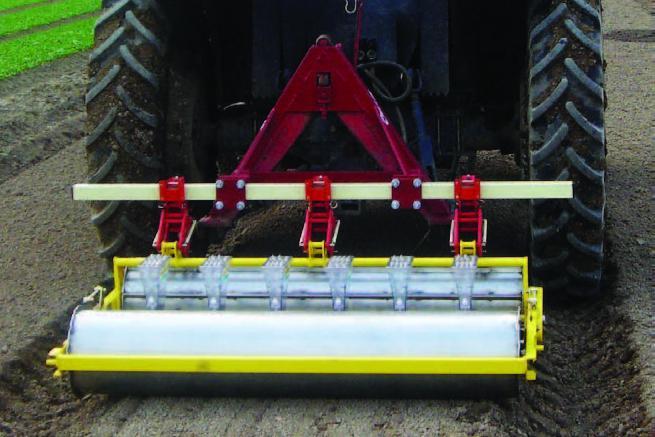

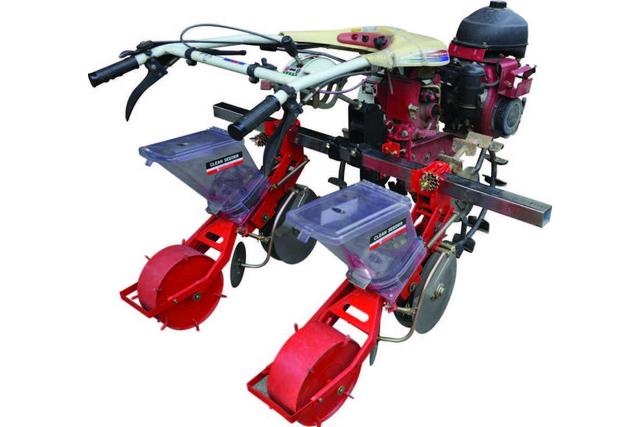

Product pictures


Product information

- Attached on the back of a tractor or a rotavator
- It sows seeds on flat lands and is able to sow on banks when it’s attached on the back of a ridge making machine.
- Each seeding unit has a dual link structure that moves up and down and performs individually.
- Driving roll and land roll operate individually.
- Minimum inter row spacing: 16㎝

Specification

Model nameJTS-1500SInter row spacing(cm)9
TypePowered typeIntra row spacing(cm)2~51
Dimension(mm)(L*W*H) 1,008*1,350*950Depth control(cm)1~3
Weight(kg)144Number of seed9
Work efficiency612 pyong (around 2,023 square meter)

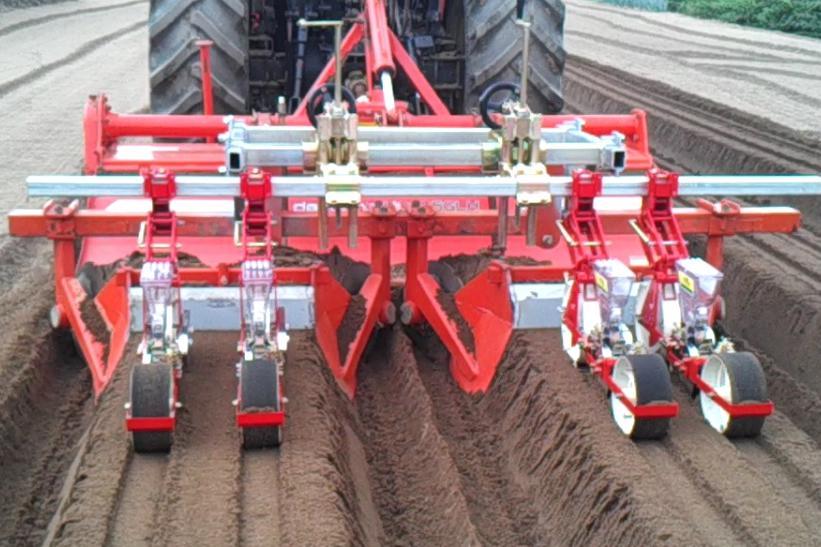

Product Information

- It needs to be attached on the three structured link on the back of a tractor before seeding.
- Driving roll and land roll operate as one assembled device.
- To adjust the length of plough, each part and the entire part of a plough can be controlled.
- Minimum inter row spacing is 9㎝ and able to be adjusted to 4.5㎝ through using plough

Roll Type
Disk Type
Groove Adjusting Type / Vacuum Type
Vinyl Automated Seeder / Earthway Seeder
Standard of Planter
