Product Detail
Powered Type Seeder JAS502, JAS802B, JAS901C, JAS1000C details Powered Type Seeder JAS502, JAS802B, JAS901C, JAS1000C details Powered Type Seeder JAS502, JAS802B, JAS901C, JAS1000C details

Powered Type Seeder

Roll Type

JAS502, JAS802B, JAS901C, JAS1000C

Urgent? then use Komachine Service
Description

Features of roll type seeder

- Seed: fine seed (shepherd’s purse, corn rose),
- normal seed(leafy vegetables, herbs), large or special seed (ginseng, bean, corn)
- Nursey plant and direct seeding are possible
- One-touch function and seeding roll change method by seed(11 levels of planting interval distance)
- Hopper vibrator option
- Harvest in equally high-quality and reduction of seeds and labor costs
- Seed storing function when backing
- Drilling and dibbling (attachment/detachment of guide plate
- Seeding roll is made of a special material proper for discharge of static electricity

Features

- 5, 8, 9, 10, 13 seeds type / equipped with 3.5HP engine
- Front-rear wheel driving system: stable drive through V-belt power and
  climbing capacity
- Basic inter row spacing : 9cmd (4.5cm is possible when using an additional seed plow)
- Able to adjust 11 levels of planting interval distance (one-touch)
- Portable wheel C type is convenient for loadingㆍunloading, packing,d and moving in a slop
- Ginseng seeding is possible when using onion nursery plant and vibration hopperd (refer to the vibration hopper video in option).
- Automated starter (6.5HP) is optional.



Specification

Model nameJAS-502CInter row spacing(cm)9
TypePowered typeIntra row spacing(cm)2~51
Dimension(mm)(L*W*H) 990*600*870Depth control(cm)1~3
Weight(kg)60Number of seed5
Work efficiency340 pyong (around 1,123 square meter)

Product information

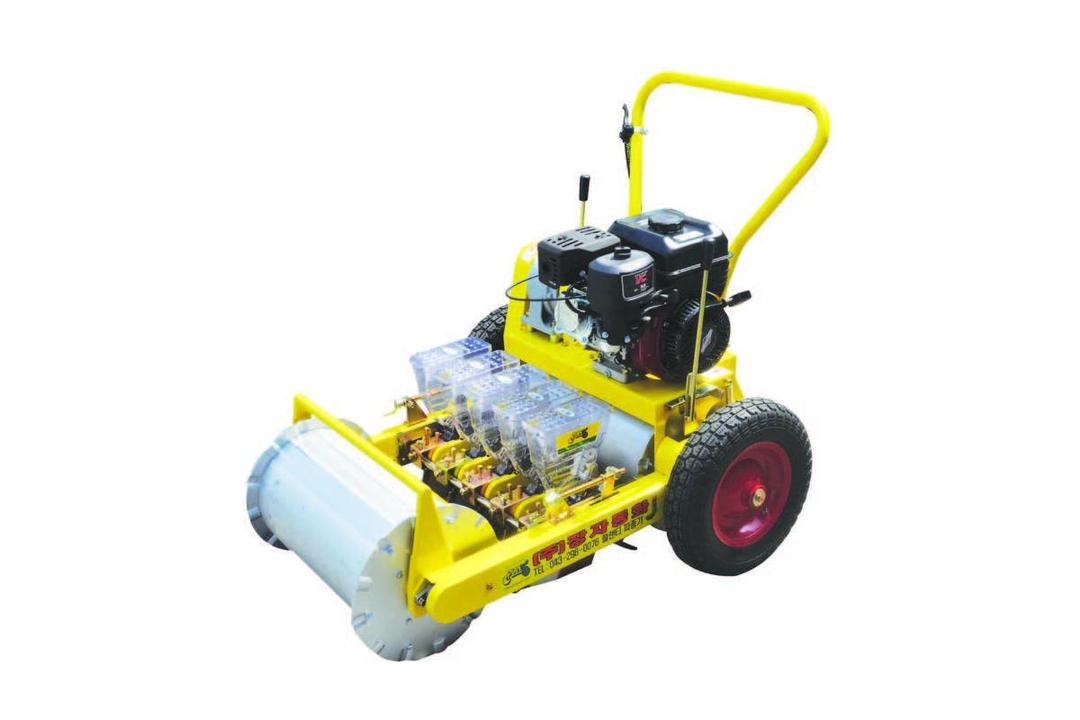

- Five-seed powered type seeder
- Driving and land roll is produced in an aluminum mold for the improvement of performance and lightening depending on concentricity
- Power cutoff lever is attached each on driving and land roll (use during rotation in the end of seeding).
- Use each of plow and lever handle to control the depth of plow.
- Moving wheel is classified in non-powered B type and powered C type.

Specification

Model nameJAS-802BInter row spacing(cm)9
TypePowered typeIntra row spacing(cm)2~51
Dimension(mm)(L*W*H) 990*880*870Depth control(cm)1~3
Weight(kg)85Number of seed8
Work efficiency544 pyong (around 1,798 square meter)

Product information

- Eight-seed powered type seeder
- Driving and land roll is produced in an aluminum mold for the improvement of performance and lightening depending on concentricity
- Power cutoff lever is attached each on driving and land roll (use during rotation in the end of seeding).
- Use each of plow and lever handle to control the depth of plow.
- Moving wheel is classified in non-powered B type and powered C type.

Specification

Model nameJAS-901CInter row spacing(cm)9
TypePowered typeIntra row spacing(cm)2~51
Dimension(mm)(L*W*H) 990*970*870Depth control(cm)1~3
Weight(kg)93Number of seed9
Work efficiency612 pyong (around 2,023 square meter)

Product information

- Nine-seed powered type seeder
- Driving and land roll is produced in an aluminum mold for the improvement of performance and lightening depending on concentricity
- Power cutoff lever is attached each on driving and land roll (use during rotation in the end of seeding).
- Use each of plow and lever handle to control the depth of plow.
- Moving wheel is classified in non-powered B type and powered C type.

Specification

Model nameJAS-1000CInter row spacing(cm)9
TypePowered typeIntra row spacing(cm)2~51
Dimension(mm)(L*W*H) 990*1060*870Depth control(cm)1~3
Weight(kg)110Number of seed10
Work efficiency680 pyong (around 2,247 square meter)

Product information

Roll Type
Disk Type
Groove Adjusting Type / Vacuum Type
Vinyl Automated Seeder / Earthway Seeder
Standard of Planter
