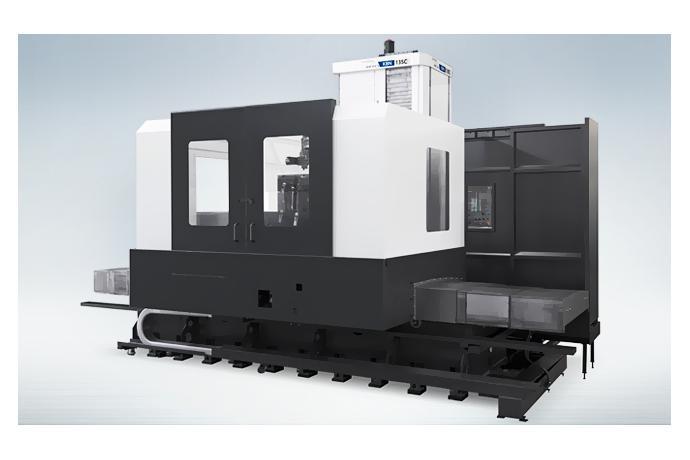

Boring M/C
Model Name
KBN135C
Series
Horizontal Machining Centers
View All
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Product Type
Machine
Brand
-
SKU
13901
Product Name
Boring M/C
Model Name
KBN135C
Size
-
Weight
-
Product Details

Features

Single unit bed for X and Z axis for ultra-precision (KB135)

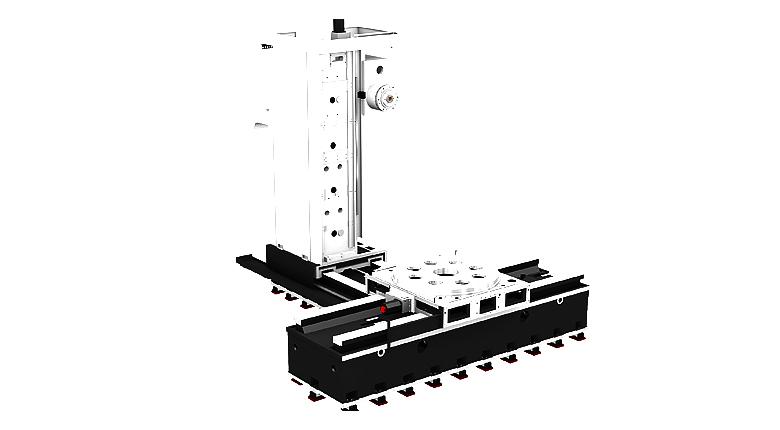

Movable column structure for high-load, heavy duty cutting needs (KB135C)

Selectable X and Y axis of up to 1,000mm (39.3″) and 500mm (19.6″) respectively

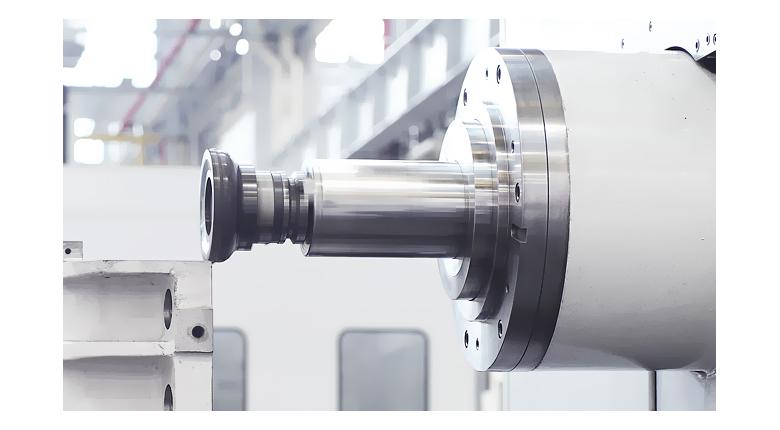

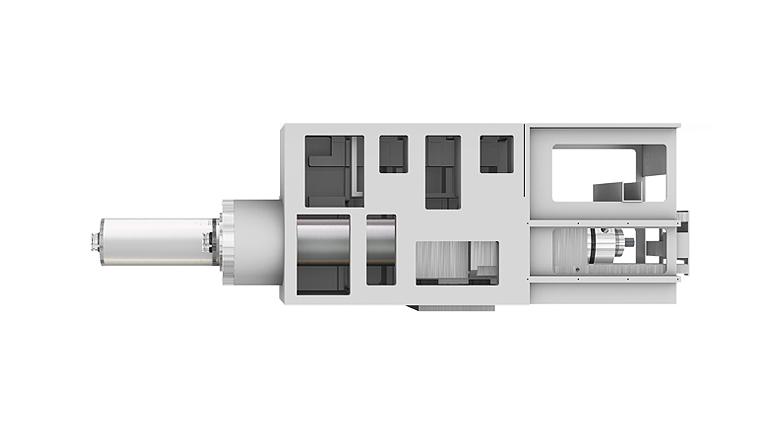

3-step gear drive main spindle for heavy duty cutting

Optimal boring capability with W-axis maximum travel of 700mm(27.5″)

Equipped with standard linear and rotary scales for ultra-precision



Specifications

Description Unit KBN135C

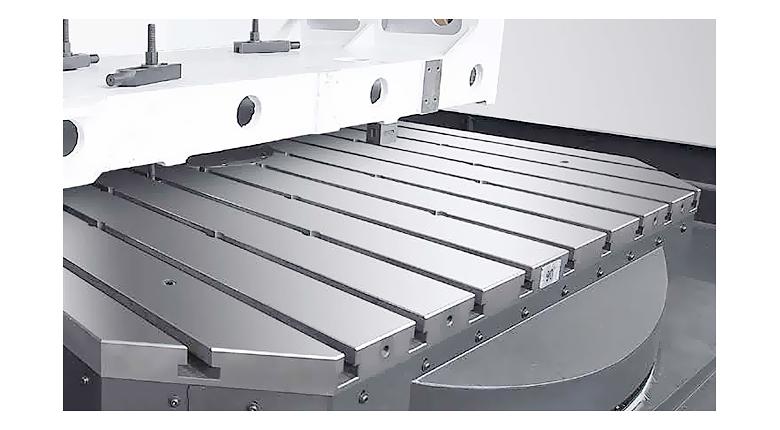

Pallets Size mm 2,000×1,800
Max. Load Capacity kgf 15,000 [20,000]
Spindle Driving Method - GEAR(3STEP)
Spindle Taper - BT50
Spindle RPM r/min 2,500
Spindle Power kw 22/18.5
Spindle Torque N.m 3,112/2,617
Travel(X/Y/Z) mm 3,000/2,000/1,600
Travel(A/C) deg 700(W-axis)
Rapid Feed Rate(X/Y/Z) m/min 10/10/10
Rapid Feed Rate(A/C) r/min 8(W-axis)
Slide Type - BOX
No. of Tools EA 40
Tool Change Time
(Chip To Chip)		 sec 33.2
CNC - F31i
