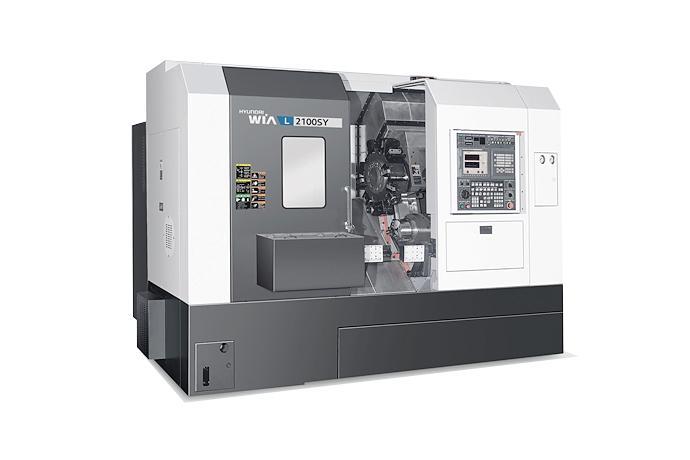

Multi-Axis T/C
Model Name
L2100Y
Series
CNC Turning Center
View All
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Product Type
Machine
Brand
-
SKU
13862
Product Name
Multi-Axis T/C
Model Name
L2100Y, L2100SY
Size
-
Weight
-
Product Details

Features

Cycle time reducing structure for maximum productivity

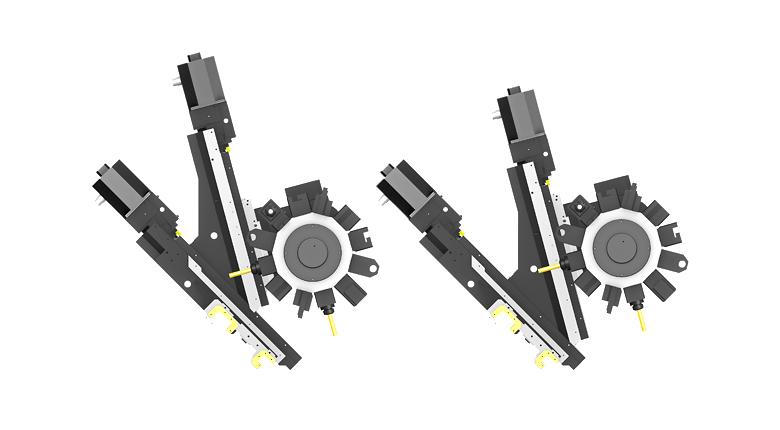

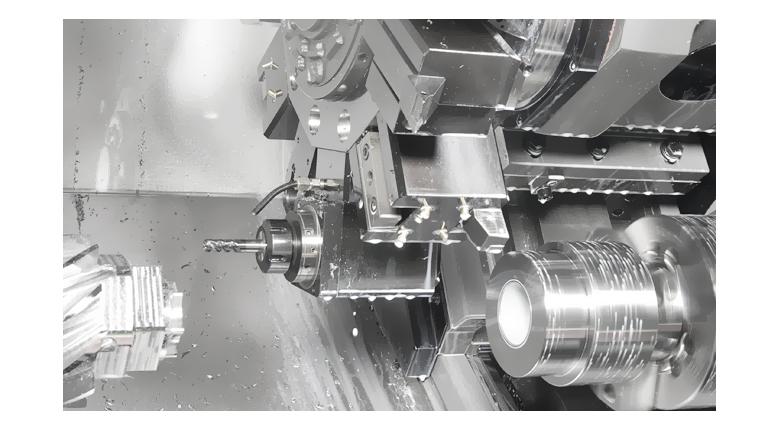

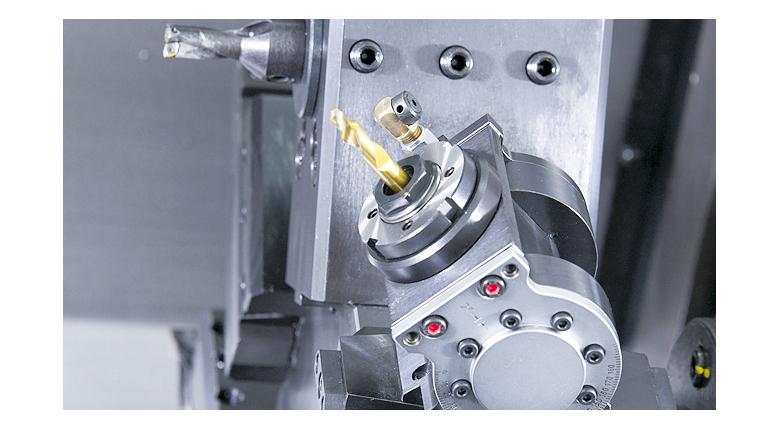

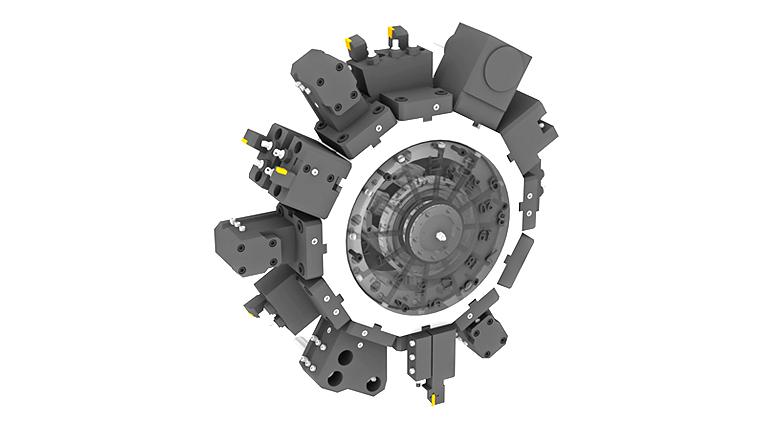

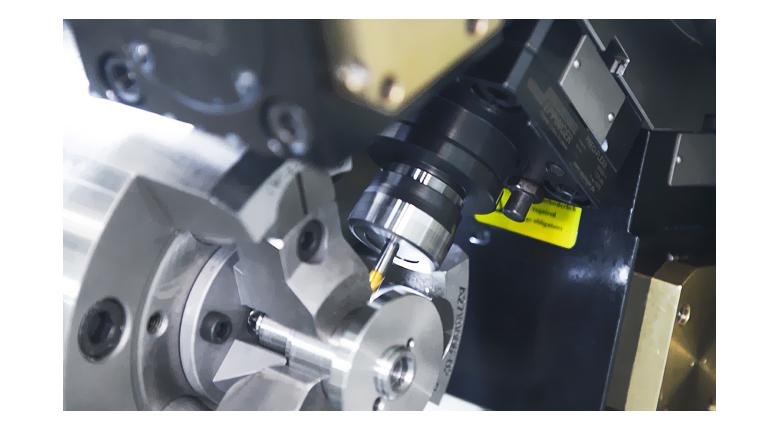

Multi-tasking operation with wedge type Y-axis BMT65P turret

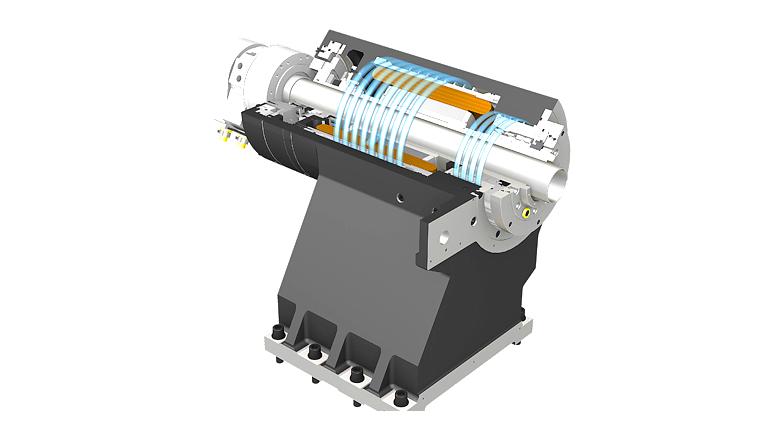

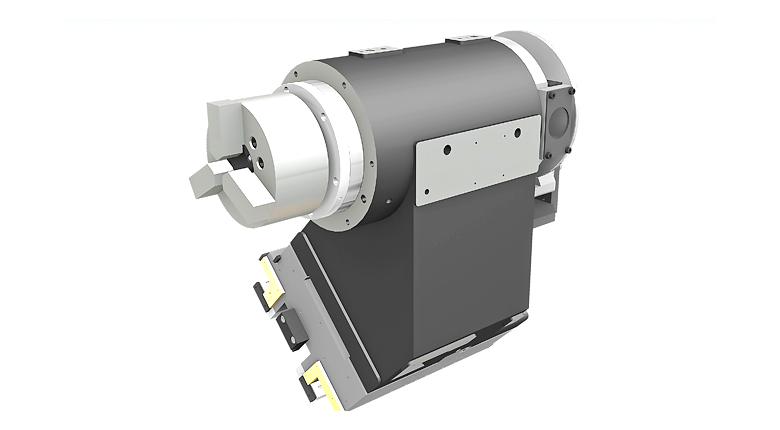

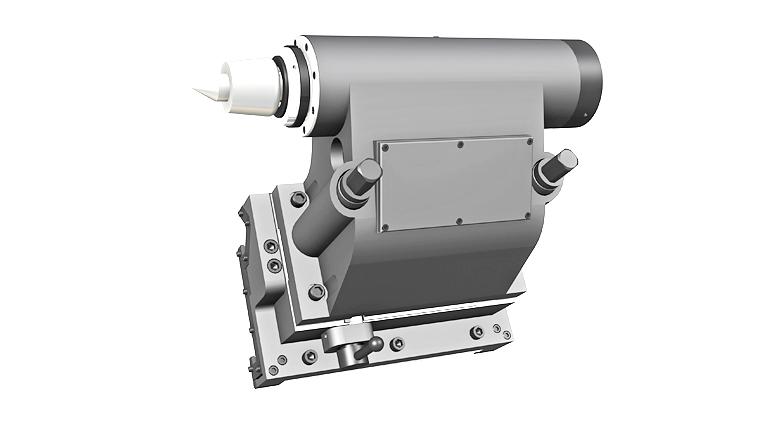

Integrated processing through synchronized control of Main/Sub spindle

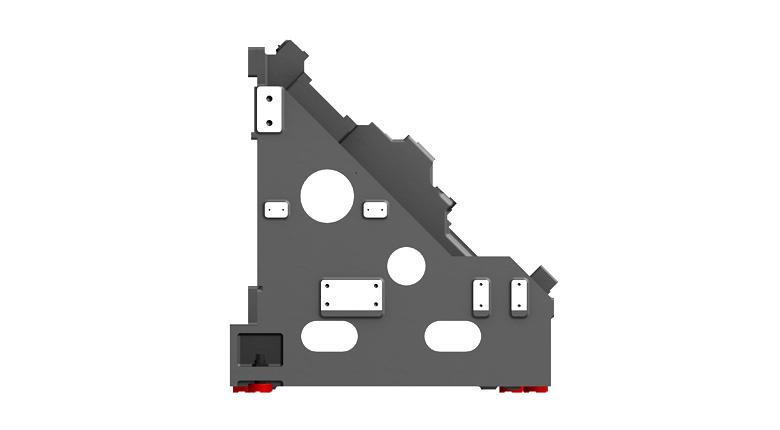

High performance heavy duty cutting enabled with box guideways

Improved maintenance through locating lubrication mechanisms on the front of machine



Specifications

Description Unit L2100Y L2100SY
Max Turning Dia mm 335 335
Max Turning Length mm 455 455
Chuck Size inch 8″ Main 8″
Sub 6″
Driving Method - Belt Belt
Spindle RPM r/min 4,500 4,500
Spindle Output kw 11/15 11/15
Spindle Torque N.m 186.5/254.2 186.5/254.2
Travel(X/Y/Z) mm 210/100/540 -
Travel(X/Y/Z/ZB) mm - 210/100/580/500
Rapid Travel(X/Y/Z) m/min 18/12/24 -
Rapid Travel(X/Y/Z/ZB) m/min - 18/12/24/24
Slide Type - BOX BOX
No. of Tools EA 12 12
Tool Size mm 25/50 25/50
Milling Tool Speed r/min 5,000 5,000
