HYUNDAI WIA

HYUNDAI WIA

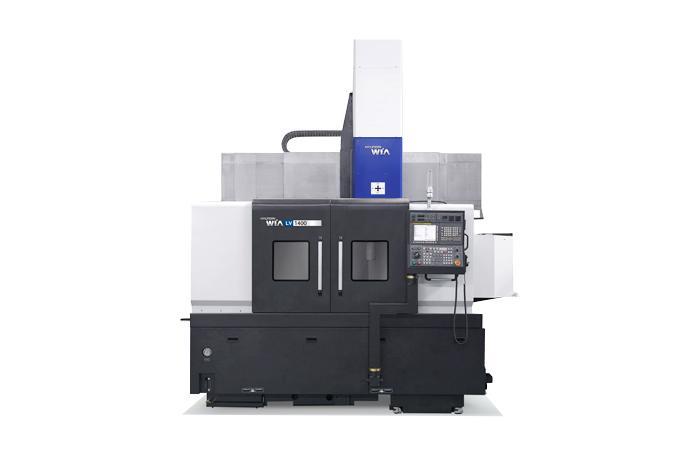

Vertical T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

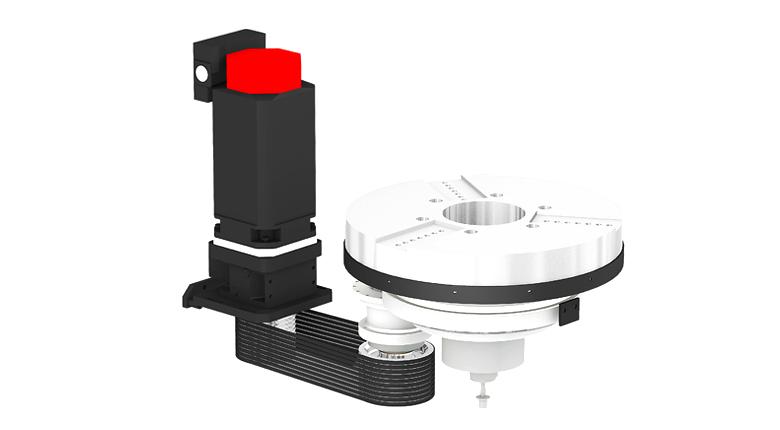

Strengthened heavy-duty cutting ability with 2-step geared drive for tables

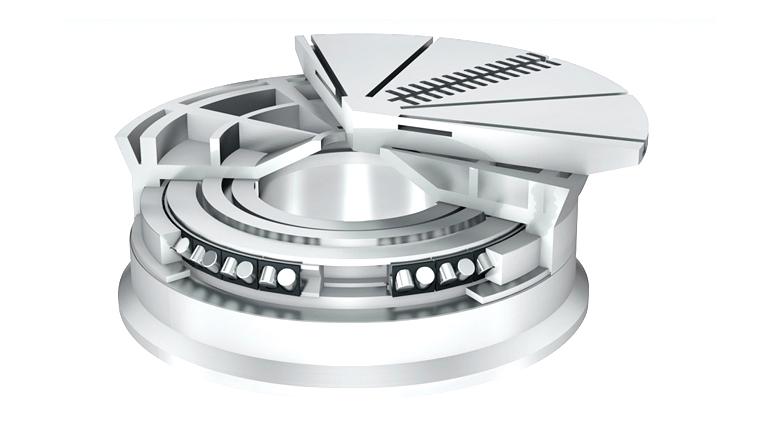

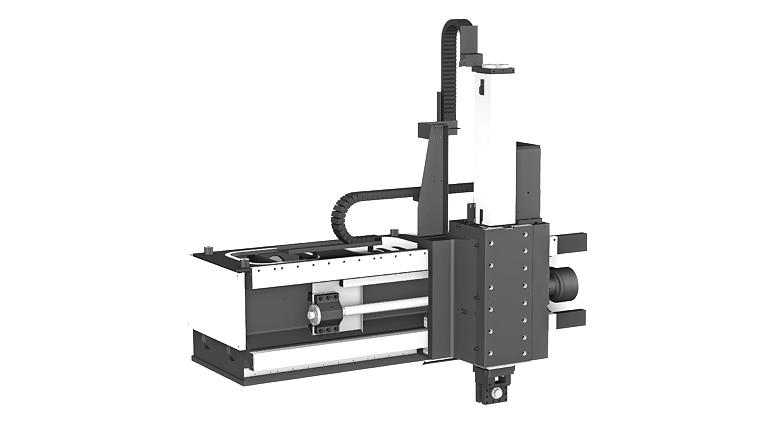

Main spindle designed with cross roller bearing and box guideway in all axes bring rigidity

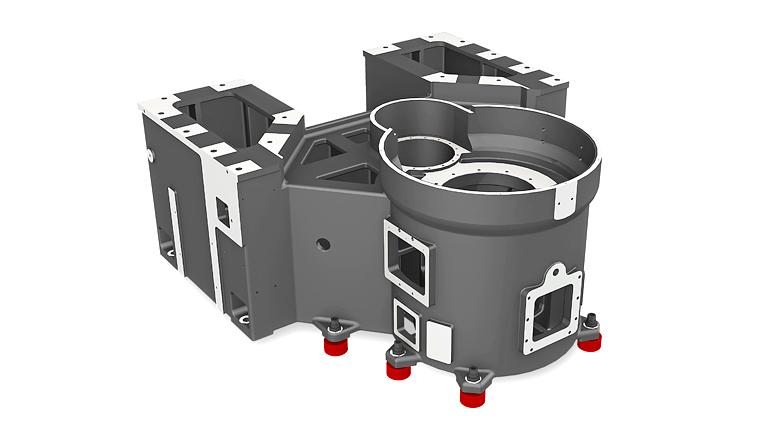

Highly rigid table structure for heavy load

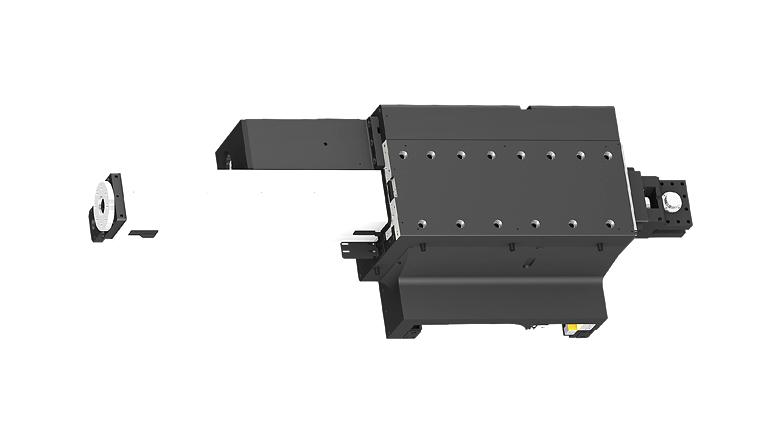

Hydraulic cylinder type 3-step moving crossrail structure(LV2000MM)

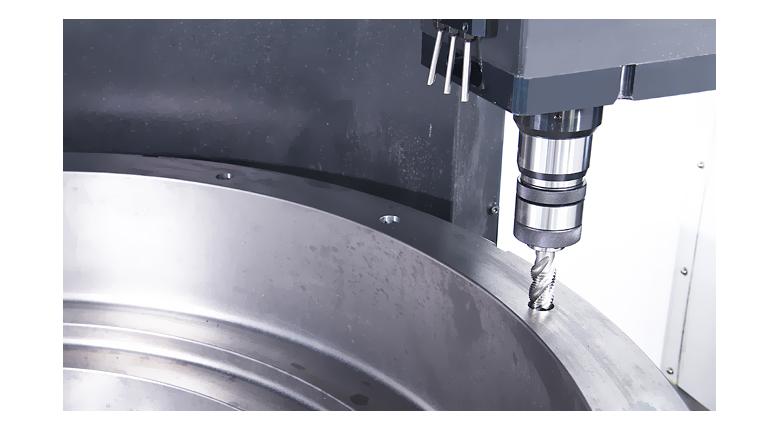

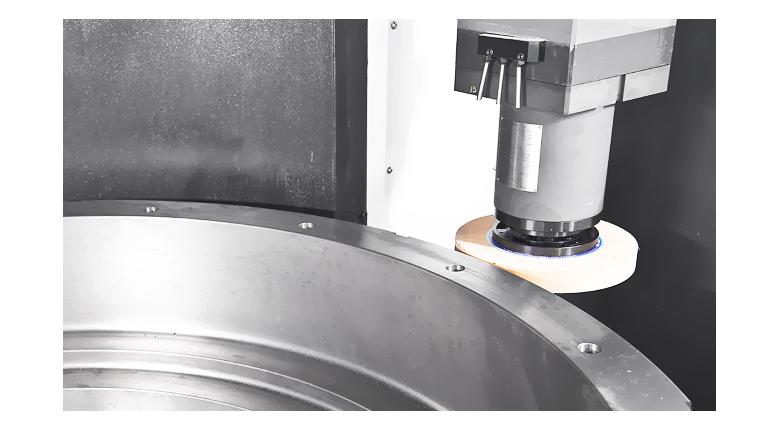

Various Machining provided: Turning, tapping, milling, grinding etc.(LV2000MF/2000MM)

Linear scale on all axes as standard



Specifications

Description Unit LV1400
Max Turning Dia mm 1,400
Max Turning Length mm 850
Chuck Size inch 40
Driving Method - Belt
Spindle RPM r/min 492
Spindle Output kw 30/37
Spindle Torque N.m 6,515/8,035
Travel(X/Z) mm -50 ~ +825/800
Rapid Travel(X/Z) m/min 12/12
Slide Type - BOX
No. of Tools EA 12
Tool Size mm 32/20
CNC - F32i
