Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more
Sturdiness secured through the adoption of an all axis box guide
All-in-one type structure with direct link for high accuracy and sturdiness

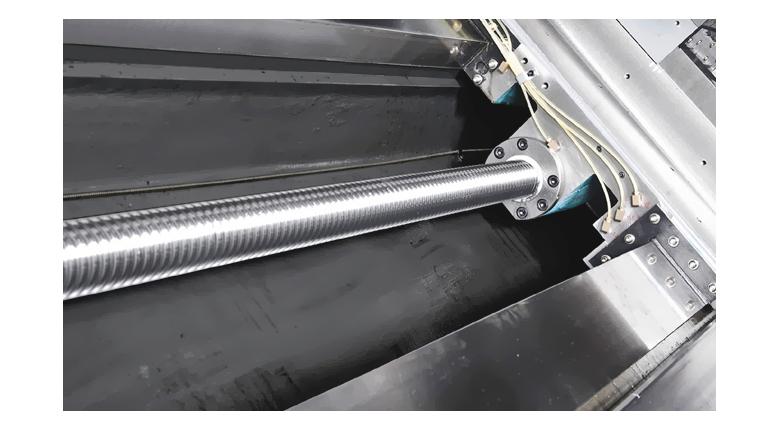

Based on double anchor method for high accuracy pretension

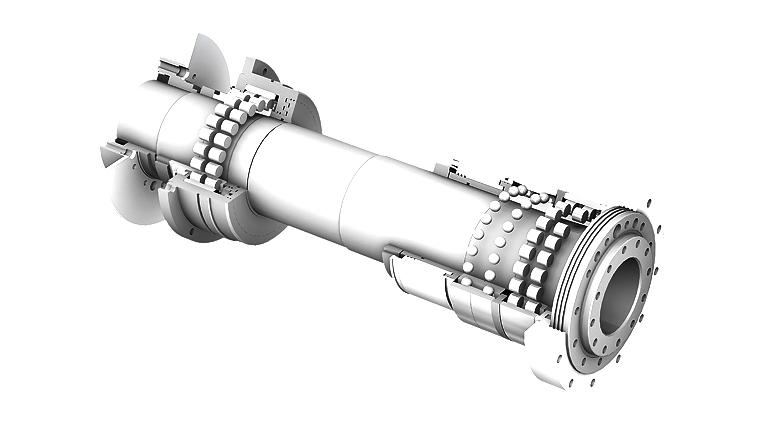

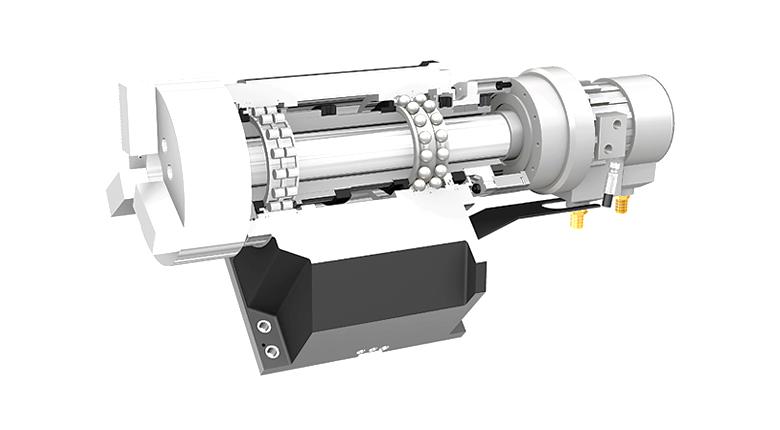

Minimized heat deformation in the main spindle
Two-Step gear box drives the main spindle across the L400 range. (L400MA : Belt)
Big Bore Spindle (L400C Series)
| Description | Unit | L400A | L400MA |
| Max Turning Dia | mm | 640 | 570 |
| Max Turning Length | mm | 1,180 | 1,180 |
| Chuck Size | inch | 12″ | 12″ |
| Driving Method | - | GEAR | Belt |
| Spindle RPM | r/min | 3,000 | 3,000 |
| Spindle Output | kw | 26/22 | 30/20 |
| Spindle Torque | N.m | 1,325/1,120 | 797/585 |
| Travel(X/Z) | mm | 325/1,205 | 325/1,205 |
| Rapid Travel(X/Z) | m/min | 20/25 | 20/25 |
| Slide Type | - | BOX | BOX |
| No. of Tools | EA | 12 | 12 |
| Tool Size | mm | 25/50 | 25/50 |
| Milling Tool Speed | r/min | - | 4,000 |
| CNC | - | H/W FANUC i | F32i |
