HYUNDAI WIA

HYUNDAI WIA

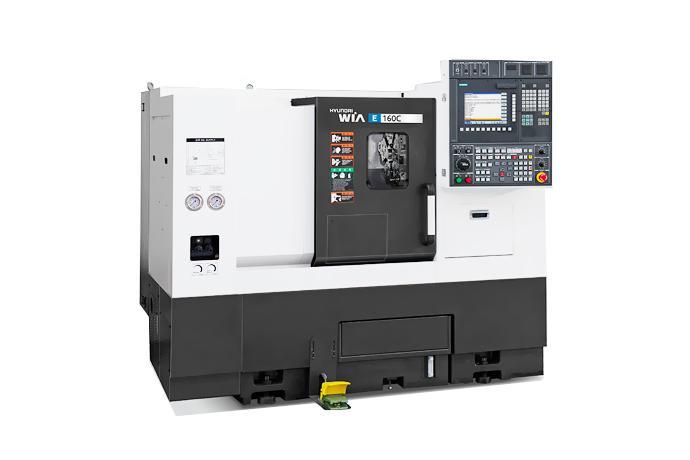

Compact T/C

Model

Series

CNC Turning Center


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

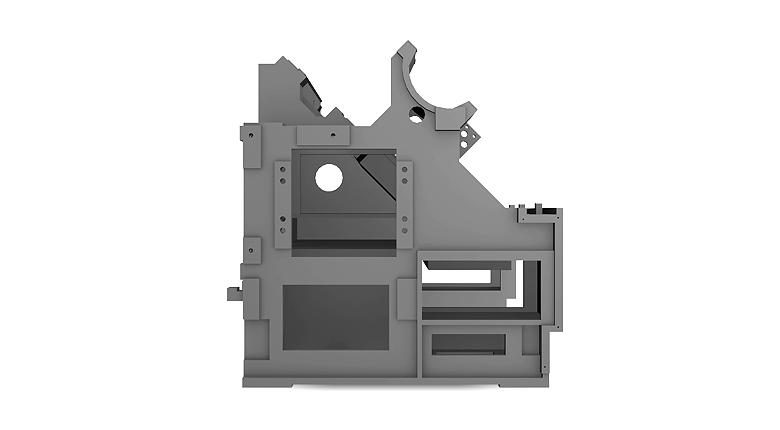

45° slanted one-piece high rigidity bed structure

Least heat distortion, the most stabilized unit structure

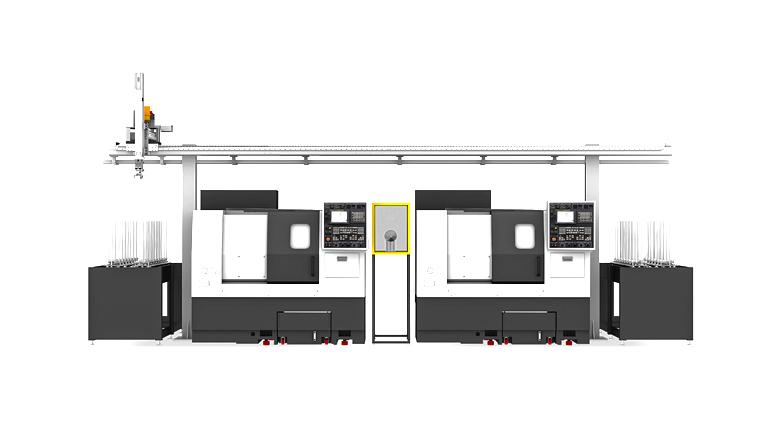

Able to extend, and high productive machine structure

Unbeatable rapid travel speed: 30m/min

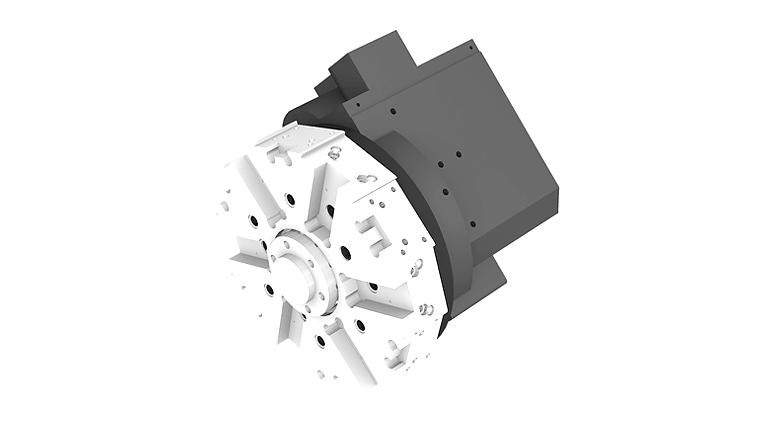

The most reliable high speed servo turret is adopted: 0.1sec/step

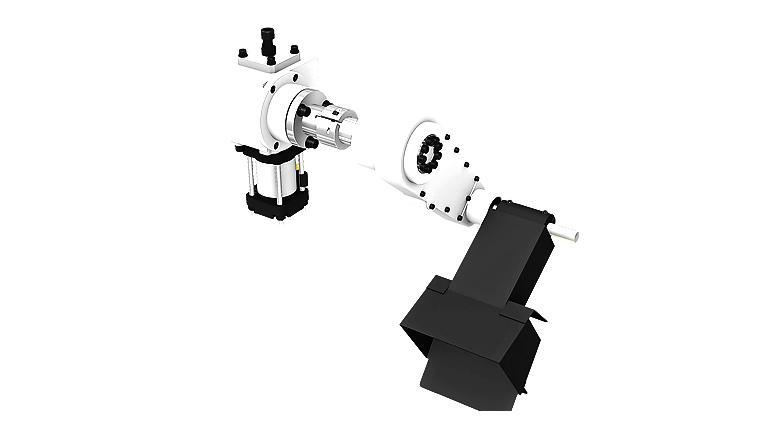

Environmental friendly, separate coolant and lubrication design

Compact design, able to install within a narrow space.

Ergonomic design allows convenient access to chuck and tool



Specifications

Description

Unit

E160C

E160LC

E160LMC

Max Turning Dia

mm

280

280

190

Max Turning Length

mm

280

510

450

Chuck Size

inch

8″

8″

8″

Driving Method

-

Belt

Belt

Belt

Spindle RPM

r/min

4,000

4,000

4,000

Spindle Output

kw

11/7.5

11/7.5

15/11

Spindle Torque

N.m

64.4/126

64.4/126

94.5/171.8

Travel(X/Z)

mm

165/330

165/530

165/460

Rapid Travel(X/Z)

m/min

30/30

30/30

30/30

Slide Type

-

LM

LM

LM

No. of Tools

EA

10

10

12

Tool Size

mm

25/32

25/32

20/32

Milling Tool Speed

r/min

-

-

4,500
