SV-1200

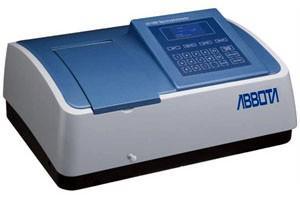

SV1200 Digital Visible Spectrophotometers

Automatically setting the wavelength

Standard Curve and Coefficient Method

Data can be restored after a sudden power cut.

Convenient for checking and reloading from saved files.

Pre-Alignment design makes it convenient to change lamps.

Basic Mode: Absorbance, Transmittance, and Concentration measurements.

Large sample compartment. It can accommodate 5-100mm Pathlength cuvettes with optional cell holders.

Large LCD screen (128 x 64 bits). It can display 3 groups per screen with standard curve and the curve equation.

Test result can be saved directly to system. The built-in RAM can store 50 groups of data and 10 standard curves.

The SpectroSoft application software provides complete control of the spectrophotometer from a computer through the built-in USB port.

SpectroVisa Visible Spectrophotometer Comparison Chart



Model	SV 1200
Wavelength Range	325-1000nm
Spectral Bandwidth	4 nm
Optical Bandwidth	Single Beam Grating 1200 lines/mm
Wavelength Accuracy	±1.0nm
Wavelength Repeatability	±0.5nm
Wavelength Setting	Auto
Photometric Accuracy	±0.5%T
Photometric Repeatability	±0.3%T
Photometric Range	-0.097A - 2.5A,  0 - 125%T
Stray Light	0.3 %T@340nm
Stability	±0.002A/h  @ 500nm
Display	Graphic LCD  (128 x 64 dots)
Photometric Mode	Transmittance Absorbance Concentration
Detector	Silicon Photodiode
Standard Cell Holder	4-Position 10 mm cell holder
Sample Compartment	Standard 10 mm Pathlenght
Light Source	Halogen Tungsten lamp
Output	USB Port & Parallel Port
Power Requirement	110V/60Hz or 220V/50Hz
Dimensions   (W x D x H)	470 x 370 x 180 mm
Weight	12 kg
